Deburring and Metal Finishing New Machines Sales
GE Machinery offers a range of quality Deburring and Metal Finishing Machines
>> Looking for used Metal Deburring and
Finishing machines? CLICK HERE
THE 10 SERIES MANUAL GRINDER
The 10 Series is Timesavers’ versatile starter model and the cost saving alternative for manual deburring, edge rounding and/or finishing of metal.
The manual grinder for fast deburring, edge rounding and finishing of metal.
This versatile machine has two heads, an easy to change grinding pad and a brush. The different kind brushes could take care of deburring, edge rounding, finishing, laser oxide removal and heavy slag removal. Also, mirror finish can be created if required. With the 180 degrees rotating shaft is it easy to rapid switching between different consumables.
The manual grinder is ergonomically responsibly designed for optimal operating conditions.
The machine has a special tabletop with a high friction surface to fix the parts during processing. Smaller parts are kept fixed in their place through the integrated vacuum.
Link the operating ease of the manual grinder to an increased production capacity.
Get information from Timesavers’ experts. They will gladly provide further advice.
Available configurations (mm):
MG 1300 x 880
Number of heads: 2
Head types: disc / cup
Disc/brush diameter: 150mm
Rotating grinding heads: 150 mm 180°
Table: 1300x800mm (960mm working height)
Vacuum area: 310x260mm
Max. thickness of part: 100mm
Power supply: 400Volt/2.5kW/11.6A
Applications: deburring, edge rounding, finishing
STANDARD VERSION WITH VACUUM:
- 2-position movable arm with weight compensation.
- Starter set to process different materials.
- Grinding dust is collected in a container, that can be cleaned easily.
- Frequency controlled drive.
- Worktable 1300 x 800 mm.
- Weight approx. 270 kg.
- Vacuum table size 250 x 300 for small parts.
- 0.75 kW main motor.
- Height-adjustable side guards for personal protection and machining of larger parts.
- CE certified.
- 400 Volt/50 Hz connection with plug.
APPLICATIONS AND BENEFITS:
- Reduction in consumables costs by long-life brushes. 3 -4 times faster compared to hand operation.
- Even edge rounding/deburring.
- Affordable entry level model.
- Wheels for easy movement.
- Optimal user-friendliness.
11/12 SERIES FOR WET AND DRY DEBURRING AND FINISHING OF SMALL PARTS
Timesavers’ deburring machines from the 11 and 12 Series have been the standard in the metal industry for more than forty years. Thousands of these economically attractive deburring machines are being used worldwide for the deburring and finishing of small parts.
The 11 Series machine is compact and requires a minimum of power, and therefore the machine can be installed everywhere.
The 11 Series operates wet and has an integrated product dryer and paper belt filter. The machine is easy to operate. After some training, a perfectly finished product can be produced.
The 11 Series is delivered with a 225 mm wide conveyor belt.
The 12 Series is available in 225 and 600 mm and is suitable for the deburring and finishing of small parts.
This dry working deburring machine with a 225 mm wide conveyor belt has an abrasive belt, disc and/or brush and is suitable for deburring and finishing a large number of small sheet metal parts.
The bigger variant with a 600 mm wide conveyor belt is available with an abrasive belt and/or brush for efficient deburring and finishing.
Efficiency and ease of use.
Operation of all Timesavers machines is ergonomic and intuitive. The 11/12 Series are perfect examples of this. Please feel free to ask for more information.
Available configurations (mm):
W | 225 | 600
WW | 225 | 600
WB | 600
WRd | 225
Number of heads: 1-2
Head types: roller, disc and brush
Machine width: 225,600mm
Disc/brush diameter: 335mm
Main drive motor: 3.7, 5 or 7.5kW
11 SERIES/12 SERIES – 225 MM WIDTH
STANDARD VERSION:
- Manual table height adjustment 1 – 75 mm.
- Digital thickness display in mm.
- Feed rate 3 – 9 m/min, frequency controlled.
- CE certified.
12 SERIES 600 MM WIDTH
STANDARD VERSION:
- Electric table height adjustment 1 – 125 mm.
- Digital thickness display in mm.
- Conveyor speed W: 3 – 9 m/min | WW+WB: 1.5 – 9 m/min.
- CE certified.
APPLICATIONS AND BENEFITS:
- Removing vertical burrs from laser, punched and waterjet cut parts.
- Stainless steel, steel, aluminium, copper, etc.
- Pre-grinding of heavy burrs and finishing in one pass.
- Option of edge breaking / fine grinding with a brush.
- Optimal ease of operation.
THE 22 SERIES FOR DRY DEBURRING, PERFECT FINISHING OR HEAVY SLAG REMOVAL
The 22 Series is suitable for the dry finishing and deburring of metal. This versatile machine is available in three nominal widths: 900 mm, 1050 mm and 1280 mm. In total, three attachments can be used with the machine for several applications.
Reduction of costs and an increase in efficiency.
By combining an abrasive belt and a brush, products can be deburred and rounded in one go. The machine is produced for deburring laser cut metal and edge rounding of sides and all of this while incurring very low costs. The Multi Disc head which consists out of 6 deburring brushes which rotate against each other can create a large rounding and nice finish.
Effective removal of heavy slag.
The Hammerhead is specially developed for fast removal of heavy slag on plasma and flame cut steel. As an option, the machine can have a wide belt grinding head behind the Hammerhead for edge breaking and further deburring.
Available configurations (mm):
H | 900
W | 900 | 1050 | 1280
B | 900 | 1050
HW | 900
WB | 900 | 1050 | 1280
BB | 900 | 1050
WWB | 900 | 1050 | 1280
WWBs | 900 | 1050
WWW | 900 | 1050 | 1280
WBB | 900 | 1050 | 1280
WMd | 900 | 1050
Number of heads: 1-3
Head types: roller, brush, multi disc, hammerhead
Machine width: 900,1050,1280mm
Abrasive belt length: 1900, 2620mm
STANDARD VERSION:
- Table mounted on 4 synchronous spindles.
- Digital thickness adjustment and display in mm.
- Frequency controlled conveyor motor, 2.5 – 14 m/min and 0.7 – 7 m/min for WBB.
- Automatic table height adjustment 1 – 125 mm.
- Electronic oscillation.
- Dust extraction hoods and connections on top.
- CE certified.
APPLICATIONS AND BENEFITS:
- Removal of vertical burrs from punched, laser and waterjet cut parts.
- Stainless steel, steel, aluminium, copper, etc.
- Deburring and surface finishing in one throughput when using multiple heads.
- Edge breaking by means of cylindrical Nylon web brushes (B), flap brushes (B) or small brush- es (MD).
- Finishing / brushing / deburring.
- Very low operating costs and high production capacity.
22RB SERIES, THE MOST COMPACT AND VERSATILE ROTATING BRUSH MACHINE
The 22 RB Series is the most compact dry operating machine for deburring, edge rounding, finishing, and/or laser oxide removal of various sheet metal parts.
The ideal machine for companies with a smaller capacity requirement, but still requiring the popular features of the 32 RB and 42 RB Series.
This machine enables customers with smaller production demand and corresponding budget to deburr, edge round and finish parts perfectly.
Reliable, repeatable grinding, deburring and edge rounding results with an automated process.
Ergonomically demanding and dirty work such as grinding and manual edge milling can be cost efficiently automated with the 22 RB Series. As market demand for consistent
and repeatable grinding, deburring and edge rounding increases, the 22 RB Series is the ultimate machine to help your company improve these processes to the highest standard.
Constant results thanks to smart software and sensors.
The machine is equipped with Siemens PLC and HMI, allowing the process and parameters to be adjusted automatically. Unique to this machine segment is that the 22 RB Series is suitable for the use of Cobots and integration in an Industry 4.0 / Smart Industry software platform.
Available configurations (mm):
WRB | 600
WRBW | 600
Number of heads: 2-3
Head types: roller (W), rotating brush (RB)
Machine width: 600mm
Main drive motor: 7.5kW
Number of brushes: 4 (quick change brush system)
STANDARD VERSION:
- Machine working width of 600 mm.
- Efficient ergonomic operation through user-friendly Siemens HMI. Vacuum table for processing small products (50 x 50 mm).
- Vacuum table with an integrated automatic cleaning cycle.
- Easily changeable brush units.
- Various brush types are possible for multifunctional use of materials. Adjustable table height 0 – 100 mm.
- Conveyor speed from 0.5 – 8 m/min.
- CE certified.
APPLICATIONS AND BENEFITS:
- Compact rotary brushing machine.
- The brush contact distance of 850 mm.
- The 4 brushes have a total of 12 m2 of abrasive material.
- Low tooling costs and very low energy consumption.
- Extremely user-friendly and an optimal process visibility.
- Removal of burrs on laser-cut, waterjet cut and punched products.
- Processable materials: stainless steel, steel, aluminium, copper etc.
- Removal of large burrs, laser oxide and finishing of surfaces in one pass.
- Edge breaking/finishing of metal with brushes.
- Removal of oxide skin with special brushes.

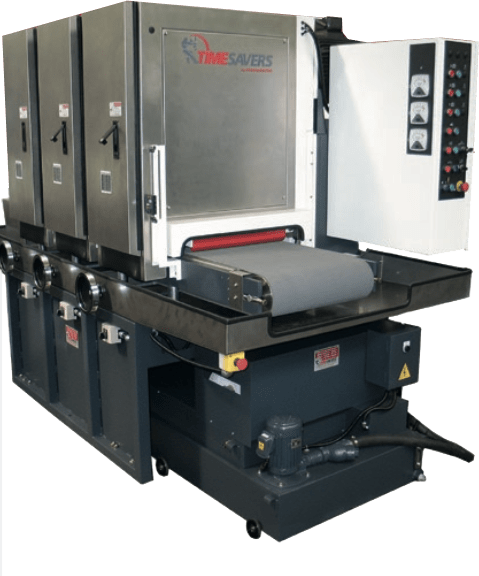

THE 31 SERIES FOR WET DEBURRING AND FINISHING
The 31 Series deburring and finishing machine is available in a width of 450 mm, 600 mm and 900 mm.
Three widths and numerable possibilities.
The 31 Series could be equipped with a powerful grinding belt and a brush head, and therefore it is the ideal machine for grinding and finishing square pipes and sheet metal.
The 31 Series, a complete Timesavers’ machine.
This complete machine has an integrated coolant filter system to cool the metal products during machining. This ensures that the abrasive belt’s service life is extended. The wet working system uses filter paper to filter the coolant before it is recirculated. An integrated dryer dries the metal products while they are exiting the machine.
Optimum machining process in combination with ease of use.
The 31 Series is the ultimate machine for fast and efficient deburring and finishing. The machine can be easily operated thanks to a clear control panel. The finishing level is one of the reasons why the 31 Series is so popular. Ask our experts for more information.
Available configurations (mm):
W | 450 | 600 | 900
WB | 450 | 900
WW | 450 | 900
WWB | 450 | 900
WBB | 450 | 900
Number of heads: 1-3
Head types: roller (W), brush (B)
Machine width: 450,600,900 mm
Main drive motor: 7.5, 11 or 15kW
Abrasice belt length: 1525mm and 1900mm
STANDARD VERSION:
Built-in cleaning filter and recirculation pump.
Transport table with a fixation system.
Automatically adjustable table opening: 450 wide: 1 – 80 mm | 600 wide: 1 – 125 mm | 900 wide: 1 – 150 mm. Digital readout material thicknesses in mm.
Conveyor speed from 4 – 12 m/min.
Integrated drying with air knives and squeeze rollers.
APPLICATIONS AND BENEFITS:
Removing burrs on laser cut, waterjet cut and punched metal parts.
Suitable for stainless steel, steel, aluminium, titanium etc.
Deburring and finishing of surfaces in one pass.
Deburring and finishing of metal parts with abrasive belt and brush.
Optimal production process and ease of use.
THE 32RB SERIES COMPACT VERSATILE MACHINE OFFERS THE PERFECT PRICE-PERFORMANCE RATIO
The 32 Series is the compact dry operating machine for deburring, edge rounding, finishing, and/or laser oxide and heavy slag removal of different materials.
The 32 Series has been developed based on the Red Dot Award winning 42 Series and is equipped with Timesavers’ much-vaunted RB technology.
The machine forms the new standard in deburring, edge rounding and finishing technology for a broad range of materials.
Very small parts can be machined due to the use of a vacuum table.
Much attention has been paid to the ease of use and user comfort with regard to this stylish and efficient deburring and finishing machine. A result is a machine that can be operated intuitively and easily. In addition, consumable use is low, the machine is energy efficient and the price quality ratio is optimal. The machining process can be easily observed because of the angled control panel and the large windows.
The ultimate deburring and finishing machine.
Our innovative high quality deburring and rounding technologies, ensure that the latest deburring machine from the Timesavers 32 Series, is the perfect machine for the metal machining industry. Let one of our Timesavers experts advise you.
Available configurations (mm):
RB | 1100
WRB |1100
WRBW | 1100
HWRB | 1100
Number of heads: 1-3
Head types: roller (W), rotating brush (RB), hammerhead (H)
Machine width: 1100mm
Main drive motor: 7.5kW
Number of brushes: 4 (quick change brush system)
STANDARD VERSION:
- Machine working width: 1100 mm.
- Efficient ergonomic operation through user-friendly Siemens HMI (located at 45° for a good overview of the treatment process).
- Vacuum table for processing small products (50 x 50 x 1 mm).
- Vacuum table with an integrated cleaning cycle.
- LED bar on the input side indicating the machine status.
- Frequency controlled motors (roller, brush and carousel) for flexibility during the process.
- Easily changeable brushes.
- Various brush types are possible for multifunctional use of materials.
- Adjustable table opening 0 – 100 mm.
- Conveyor speed from 0.2 – 8 m/min.
- CE certified.
APPLICATIONS AND BENEFITS:
- Compact rotary brush machine.
- Brush contact distance of 600 mm.
- The 4 brushes have a total of 12 m2 of abrasive material.
- Removal of burrs on e.g. laser cut, waterjet cut, punched products, etc.
- Processable material: stainless steel, steel, aluminium, copper etc.
- Removal of burrs, egde rounding, laser oxide removal and finishing of surfaces in one pass.
- Edge breaking/finishing with abrasive flap brushes.
- Removal of oxide skin with special brushes.
- Removal of large burrs caused by flame or plasma cutting by using the Hammerhead
- Low tooling costs and very low energy consumption.
- Maximum user-friendliness and an optimal observation process.
- Removal of large burrs caused by flame cutting

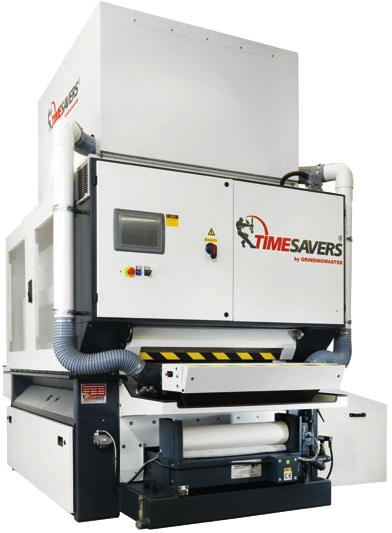

41 SERIES: WET GRINDER FOR 24/7 DEBURRING AND FINISHING
The Timesavers 41 Series deburring machine has been designed to be operational 24/7. This makes the 41 Series the ideal machine for deburring and finishing of metal products.
The 41 Series has been developed for high volume production.
This wet, high-quality grinder is available with one to four heads in combination with wide abrasive belts, disc and brush heads. This makes the machine extremely suitable for machining thin, oiled, greasy and/or highly inflammable metal parts and materials.
Timesavers offers the 41 Series in three operating widths: 900 mm, 1100 mm or 1350 mm.
The 41 Series can be accessed on all sides and is easy to clean.
This wet grinding and deburring machine can be perfectly and easily maintained. The entire machine can be pressure cleaned every day because of easy access from both sides of the machine.
Are you looking for a machine with consistent performance?
The 41 Series is the equipment to use when you machine high volumes! Allow us to explain in detail about the flexibility of this machine.
Available configurations (mm):
Rd | 900 | 1350
WRd | 900 | 1350
WRdW | 900 | 1350
W | 900 | 1350
WB | 900 | 1350
WW | 900 | 1350
WWB | 1100 | 1350
WWBB | 1100 | 1350
Number of heads: 1-4
Head types: roller, brush disc
Machine width: 900, 1100 and 1350mm
Main drive motor: up to 2.6kW
Sanding belt length: 1900, 2150 and 2620mm
STANDARD VERSION:
- Easily interchangeable brush units.
- Different brush types possible for multifunctional use of materials.
- Infeed velocity from 1 – 10 m/min.
- Integrated paper belt filter and product dryer.
- CE ertified.
APPLICATIONS AND BENEFITS:
- Treatment of oiled parts or contaminated parts.
- Products are automatically washed and are exiting the machine dry and dust free.
- Suitable for various materials, without need for changing abrasives.
- Removal of burrs on laser cut, water jet cut and punched products.
- Suitable material: stainless steel, steel, aluminium, titanium etc.
- Pre-grinding of large burrs and finishing of surfaces in one pass.
DISCOVER ‘THE POSSIBILITIES’ OF THE 42 SERIES FROM TIMESAVERS
The 42 Series consists of a broad range of machines for flawless deburring and finishing. The 42 Series is Timesavers’ most popular and versatile machine.
The grinding machines in Timesavers’ 42 Series are available in several widths:
900 mm, 1100 mm and 1350 mm. The machines can be supplied with a maximum of three heads in various combinations of abrasive belt, disc and brushes.
The machine can deburr and finish in one pass by integrating different heads.
Convenience.
The 42 Series grinding machines have been produced for constant use and are equipped with a lifting and lowering unit on the abrasive belt (diameters of 180 mm, 280 mm and 450 mm). This ensures that the flexibility of application can be changed easily.
The power of simplicity.
This machine stands out because of its ease of use. The operator can immediately and effectively work with the machine after a short training course. Our experts will give you professional advice.
Available configurations (mm):
W | 900 | 1100 | 1350
WW | 900 | 1100 | 1350
WB | 900 | 1100 | 1350
WWB | 1100 | 1350
WWB-S | 900 | 1100 | 1350
Number of heads: 1-4
Head types: roller, brush, disc
Machine width: 900, 1100 and 1350 mm
Main drive motor: 11, 15 or 18.5kW
Sanding belt length: 1900mm
STANDARD VERSION:
Centrally located and user-friendly control panel.
Automatic infeed height adjustment from 0 – 150 mm.
Frequency controlled conveyor belt with a speed of 1 – 10 m/min.
Window doors and illuminated interior for process observation.
Available with 1, 2, 3 or 4 heads.
CE certified.
APPLICATIONS AND BENEFITS:
Removal of burrs on laser, plasma-cut or waterjet cut parts, cut parts, machined parts.
Stainless steel, steel, copper, aluminium, copper, etc.
Long-life consumables and higher processing efficiency.

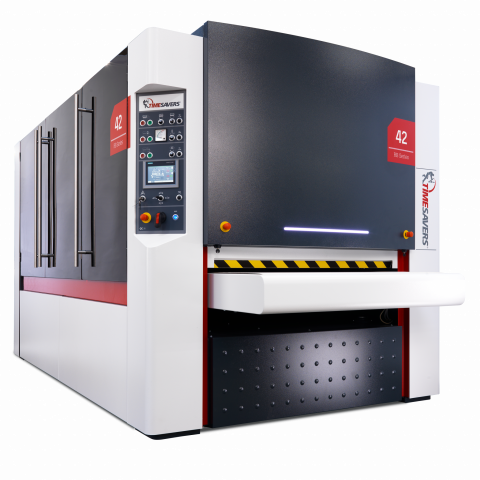

42 RB SERIES FOR ULTIMATE DEBURRING, FINISHING, EDGE ROUNDING, LASER OXIDE AND HEAVY SLAG REMOVAL
Discover the ultimate machine for uniform deburring, edge rounding and finishing of your product(s). Read everything about Timesavers’ 42 Rotating Brush (RB) Series below. This is the most popular and award winning Timesavers’ machine.
This machine has been developed for people who want only the best.
The 42 RB Series offers the solution for manufacturers who supply premium quality products. This quality is achieved through a multi-rotating brush machine with eight abrasive flap brushes that deburr uniformly and round the edges of the metal perfectly. This makes it possible to achieve a radius of 2 mm on mild steel and even more on softer material like aluminium.
The Timesavers Rotating Brush Machine.
This deburring machine can also be provided with one or more abrasive belt heads and therefore it will perfectly remove very large burrs and/or it will guarantee the perfect finish. The machine is suitable for machining punched, laser-cut and plasma-cut part and even
3D and milled parts with deep pockets. With the use of a standard vacuum table with automatic vacuum control, also small parts from 50 mm and large parts up to 1600 mm, can be machined. The materials that can be machined include stainless steel, aluminium, zincor, zinc and laser film products. Available in this machine segment is the use of Cobots and integration in an Industry 4.0 / Smart Industry software platform.
Available configurations (mm):
RB | 1350 | 1600
WRB | 1350 | 1600
RBW | 1350 | 1600
WRBW | 1350 | 1600
WWRB | 1350
WWRBW | 1350
Number of heads: 1-4
Head types: roller, rotating brush, hammerhead
Machine width: 1350, 1600mm
Main drive motor: 28-75kW/67-180 A
Number of brushes: 8 (quick change brush system)
STANDARD VERSION:
- Ergonomic positioned and user-friendly control panel (located at 45° for a good overview
of the treatment process). - Motorised adjustable table opening from 0 – 100 mm.
- Rotating brush carousel equipped with 4 counterclockwise and 4 clockwise rotating brushes.
- Frequency controlled conveyor belt with an adjustable feed speed of 0.2 – 8 m/min.
- Window doors, illuminated interior and optional camera’s for process observation.
- Brushes with an extremely long service life of up to 3000 hours.
- LED bars on the input and output to indicate machine status.
- Available with 1, 2, 3 or 4 heads.
- Vacuum table with an automatic cleaning cycle.
- Quick change system for brushes and belts.
- CE certified.
APPLICATIONS AND BENEFITS:
- The brush contact distance of 42 RB 1350: 1670mm – 42 RB 1600: 1750mm.
- The 8 brushes have a total of 46 m2 (1350) – 53 m2 (1600) of abrasive material.
- Processing of mixed materials with optional wet dust extraction.
- Treatment of small parts, 50 x 50 mm, possible with the standard vacuum table.
- The removal of burrs due to laser, plasma, water jet cut and embossed parts in one go.
- Flat, formed and 3D parts with pockets/protrusions.
- Preliminary removal of large burrs and finishing of surfaces.
- Stainless steel, mild steel, aluminium, copper, etc.
- Deburring Zintec, galvanised and plated material.
- Use of Cobots integration in an Industry 4.0/Smart industry software platform.
THE 62 SERIES: FOR FINISHING COLD ROLLED STAINLESS STEEL SHEETS
The 62 Series offers a full solution for finishing stainless steel sheets. Two different working widths are available: 1350 mm and 1600 mm.
Perfect finishing including thin sheet material from 0.4 mm (optional).
The 62 Series machine can be fitted with one or more heads and therefore you can achieve a no. 3, no. 4 and duplo finish in one machine.
A duplo finish can be achieved using a grinding belt followed by a Scotch-Brite brush that will produce an additional fine surface. Very thin sheets can be ground and finished because of the special construction of the roller table.
In addition to the standard machine, we also offer turnkey solutions.
We can also supply the ancillary equipment. GE Machinery organises, installs, instructs and provides a perfect working machine-line. Examples include:
- Roller conveyors and tables.
- Automatic stacking/de-stacking units. PVC-coating machines.
- Dust extractors for dry grinding machines.
Available configurations (mm):
WWB | 1350 | 1600
WW | 1350 | 1600
WB | 1350 | 1600
BB | 1350 | 1600
Number of heads: 1-3
Head types: roller and/or brush
Machine width: 1350, 1600 mm
Brush attachment size: 350 mm
Number of brushes: 1-3
STANDARD VERSION:
- Centrally programmable HMI Siemens control panel.
- Wide belt grinding heads with a fine adjustment of the contact rollers (diameter of 220 mm).
- With frequency controlled main motors for all possible finishes.
- Scotch-Brite brush heads with fast oscillation of up to 700 strokes per minute: frequency controlled main motor, brush outer diameter of 350 mm, motorised height adjustment with quick exchange brush system.
- Roller table construction with hardened steel counter roller under the contact roller for finishing thin sheets from 0.4 mm (need of an additional package).
APPLICATIONS AND BENEFITS:
- No. 3 or no. 4 finishing with abrasive belts from grit 120, 180 to
even 240 and 320. - Brush / microlon finishing with Scotch-Brite brushes or with Scotch-
Brite belts. - Duplo finish; a combination of finishing with grinding belts and Scotch-Brite brush(es). Can be purchased as a turnkey project.

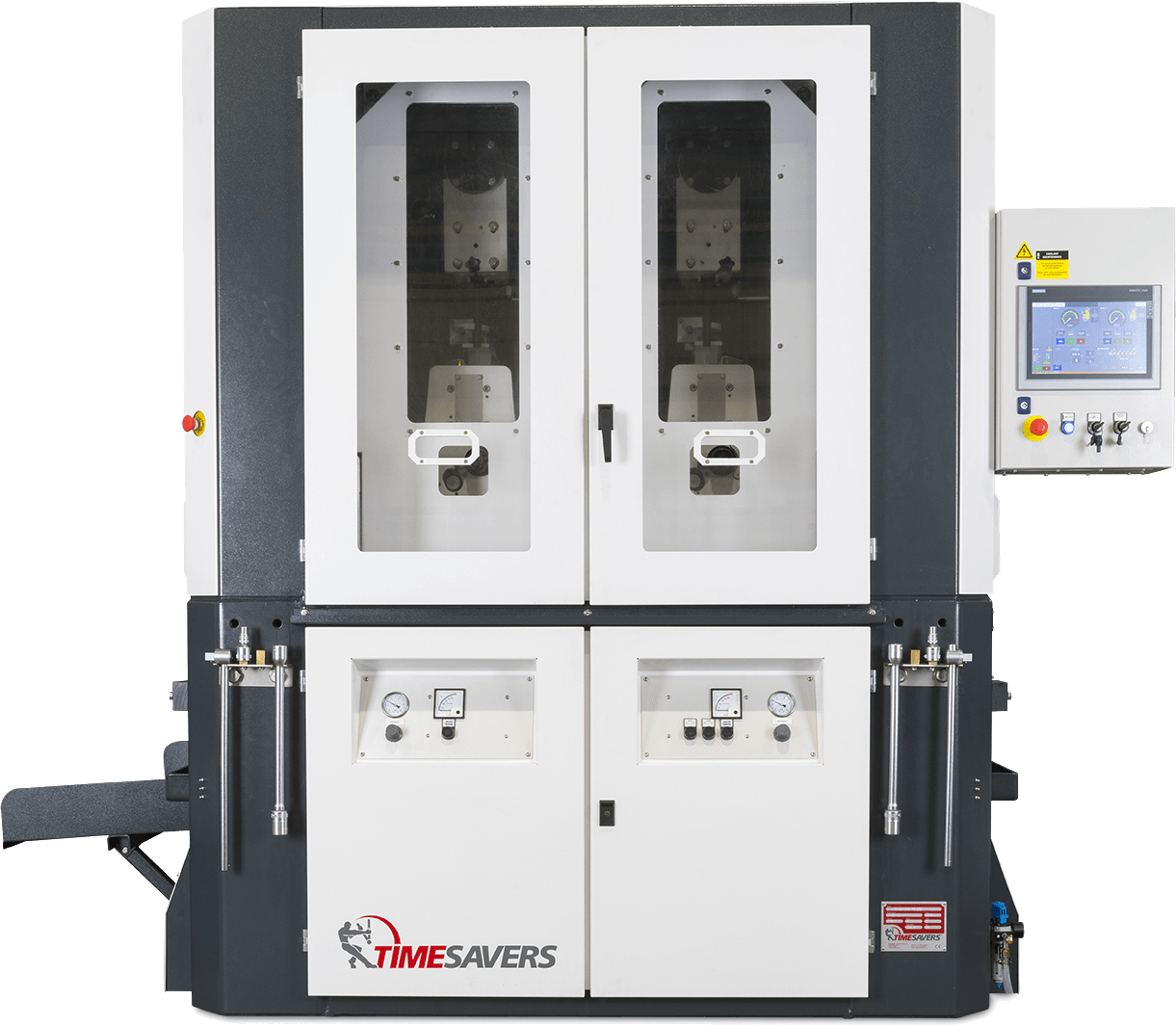

THE 71/72 SERIES: A COMPLETE ‘COIL-TO-COIL’ LINE: WET OR DRY
In addition to top working machines bottom working machines can be integrated in the production line. Finishing of cold & hot rolled sheets is also possible with this machine.
We offer our 71/72 Series for finishing of sheet material rolls.
The machine has a production speed of up to 30 m/min and delivers a perfectly finished end result. The 71/72 Series has been developed to perform: day-in, day-out, year-in and year-out.
Timesavers provides advice, delivers, installs and offers backups.
If required we can deliver turnkey projects that can include, for example, a leveling machine, decoiler, coiler, a PVC-coating machine, roller tables and/or stackers. With experienced support from the design phase up to and including delivery. Additional examples include:
- Dust extractors for dry finishing machines.
- Water filter units for wet finishing machines.
- In other words a complete ‘coil-to coil’ finishing line.
Available configurations (mm):
WW | 1350 | 1600 | 2100
WB | 1350 | 1600 | 2100
BB| 1350 | 1600 | 2100
Number of heads: 1-2
Head types: roller, brush and hairline
Machine width: 1350, 1600 and 2100 mm
Brush attachment size: 400 mm
Number of brushes: 1-2
STANDARD VERSION:
Centrally programmable HMI Siemens control panel.
Wide belt grinding heads with a fine adjustment of the contact rollers (diameter of 280 mm). With frequency controlled main motors for all possible finishes.
Hairline finishing machine with endless grinding belt for ease of operation and perfect straight line.
Scotch-Brite brush heads with fast oscillation of up to 500 strokes per minute: frequency controlled main motor, brush outer diameter of 400 mm, motorised height adjustment with quick exchange brush system.
Roller table construction with hardened steel counter roller under the contact roller
for finishing thin sheets from 0.5 mm.71 Series wet and 72 Series dry.CE certified.
APPLICATIONS AND BENEFITS:
- ‘Coil-to-coil’.
Sheet to sheet; both hot and cold rolled.
No. 3 or no. 4 finishing with abrasive belts from grit 120, 180 to even 240 and 320.
Brush / microlon finishing with Scotch-Brite brushes or with Scotch-Brite belts.
Duplo finish; a combination of finishing with grinding belts and Scotch-Brite brush(es).
Long scratch hairline finishing; a finish often favoured in the Far East.
Can be purchased as a turnkey project.

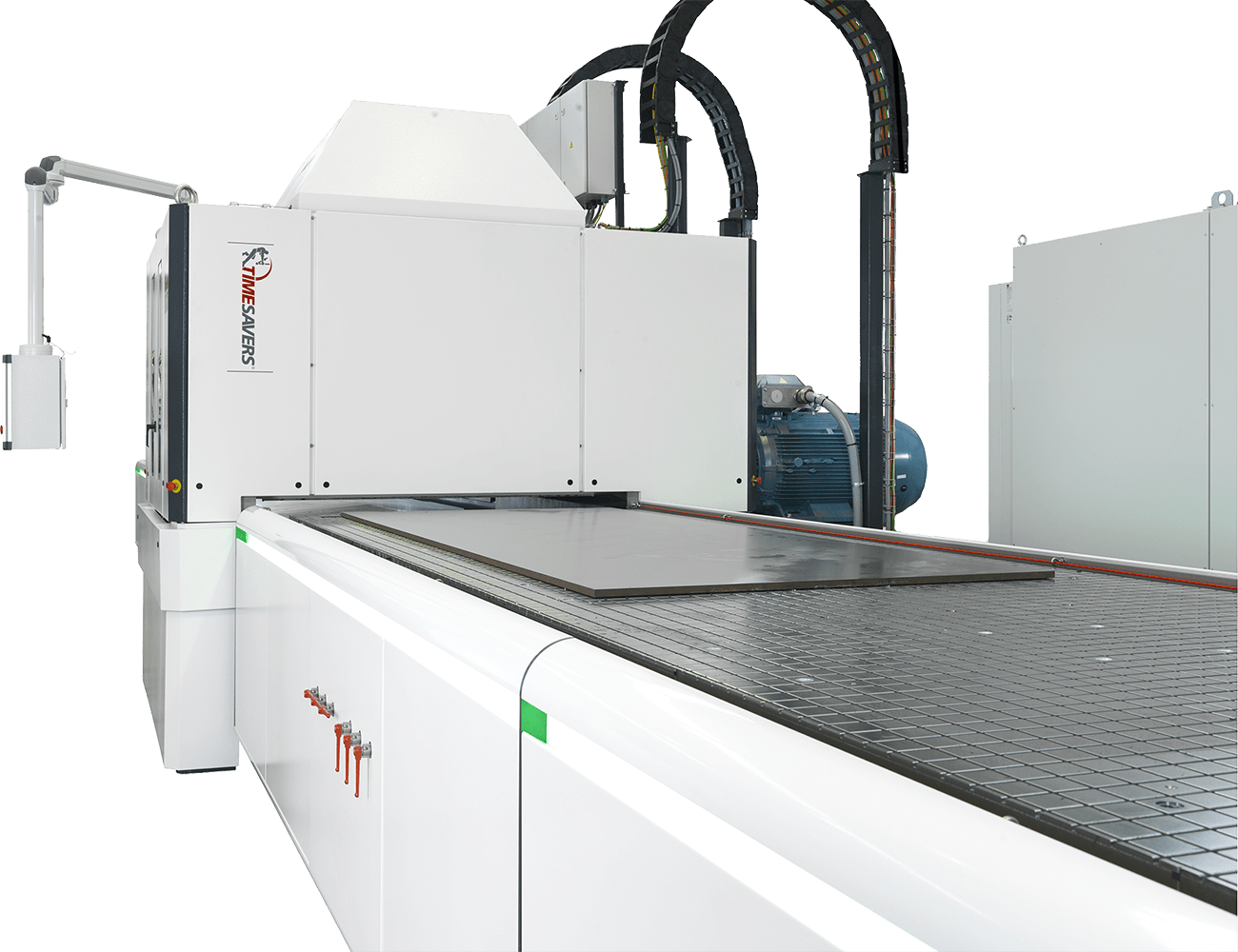

THE 81 SERIES: THE INNOVATIVE SOLUTION FOR PRECISION GRINDING
Timesavers’ innovative solution for precision metal grinding, supplying a full process solution.
Precision grinding up to 0.02 mm? No problems with the Timesavers 81 Series.
This machine uses wide grinding belts with a tight tolerance and is used for the precision grinding of titanium, molybdenum, stainless steel, aluminium/nickel alloys, carbon steel and more. The machine grinds these metals with a precision of no less than 0.02 mm.
The Timesavers precision grinding machine: totally tailor made.
Every variant from the 81 Series is produced especially based on customer requirements. Precision grinding is performed by a wide belt that grinds the thickness of a part to achieve a fixed thickness. The Timesavers 81 Series has a conveyor belt,
a roller table or a reciprocating table, coupled with high grinding power to make this precision grinding possible.
All executions in this machine range will have air knives to keep the coolant in the machine. In addition to this, a mist filter will remove small coolant particles out of the air. The machine is executed with servo drives for accurate positioning.
GE Machinery offers know-how and a far-reaching service.
We also, for example, offer turnkey solutions where the handling of all ancillary equipment is organised and installed for you. Examples include:
- Roller conveyor and tables.
- Coolant filter units for wet grinders.
- Automatic stacking and de-stacking units.
- Turnover unit.
Available configurations (mm):
W | 600 | 1000 | 1600 | 2100 | 2600
WW | 600 | 1000 | 1600 | 2100 | 2600
WB | 600 | 1000 | 1600 | 2100 | 2600
BB | 600 | 1000 | 1600 | 2100 | 2600
Number of heads: 1-2
Head types: roller, brush
Machine width: 600, 1000, 1600, 2100 and 2600mm
Brush attachment size: 400mm
Number of rollers: 1-2
STANDARD VERSION:
- Precision grinding of titanium, molybdenum, stainless steel, nickel/aluminium alloys, and carbon steel.
- Grinds material to a predetermined thickness; flat, tapered or U shaped.
- Removes up to 0.2 mm per grinding stroke depending on the material.
- Accuracy of +/- 0.02 mm.
- Suitable for materials with thicknesses of 0.25 mm to 100 mm.
- Central control panel mounted on the machine or as a desk.
- Siemens HMI with pre-programmable settings.
- Integrated belt optimization program for maximum use of the grinding belt capabilities.
- Possibility to grind in both directions.
- Wet version with integrated spray to separate dirt and fine dust.
- Integrated vacuum system with safety features.
- One or more vacuum segments that can be operated individually.
- Quick exchange system for the grinding belt.
- Motorised machine opening with an opening of 0-100 mm(optional thicker on request).
- Variable abrasive belt speed of 5-22 m/sec.
- Built-in chiller in the coolant tank.
- CE certified.
- Can also be purchased as a turnkey project in combination with various types of ancillary equipment.
CNC POLISHING MACHINE
HP-I/1UT-CNC
CNC universal machine for polishing, belt grinding, satin finishing and deburring of different parts from the sectors of aerospace, automotive, etc.
CNC POLISHING MACHINE
HD-I/1UT(D)-CNC
CNC belt grinding machine with 1 double working head for welding cleaning and satin finishing.
CNC POLISHING MACHINE
HD-I/1UT(D)-CNC
CNC polishing machine with double working head and piece holding table for large parts.
CNC POLISHING MACHINE
HD-II/2UT(D)-CNC
CNC polishing machine with 2 double working heads and 2 piece holding spindles to allow 2 parts to be simultaneously finished.
CNC DEBURRING / MICRO-FINISHING
RDHI-10-2000/8UT-CNC+1VR
CNC rotary transfer machine for the deburring and micro-finishing of gears, with robotised loading and unloading.
CNC DEBURRING / MICRO-FINISHING

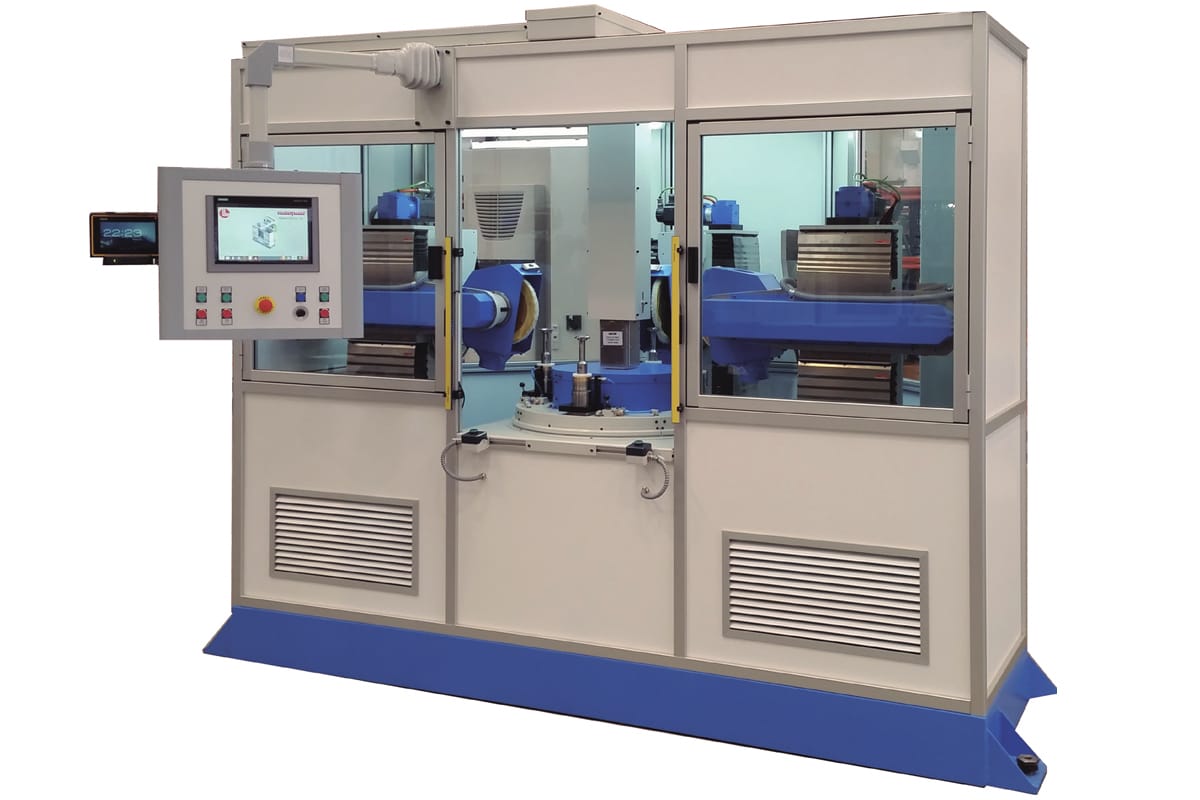

RSB-8HI/6UT
CNC rotary transfer deburring machine with 6 working heads, automatic loading and unloading for high production of sintered parts for the automotive sector.

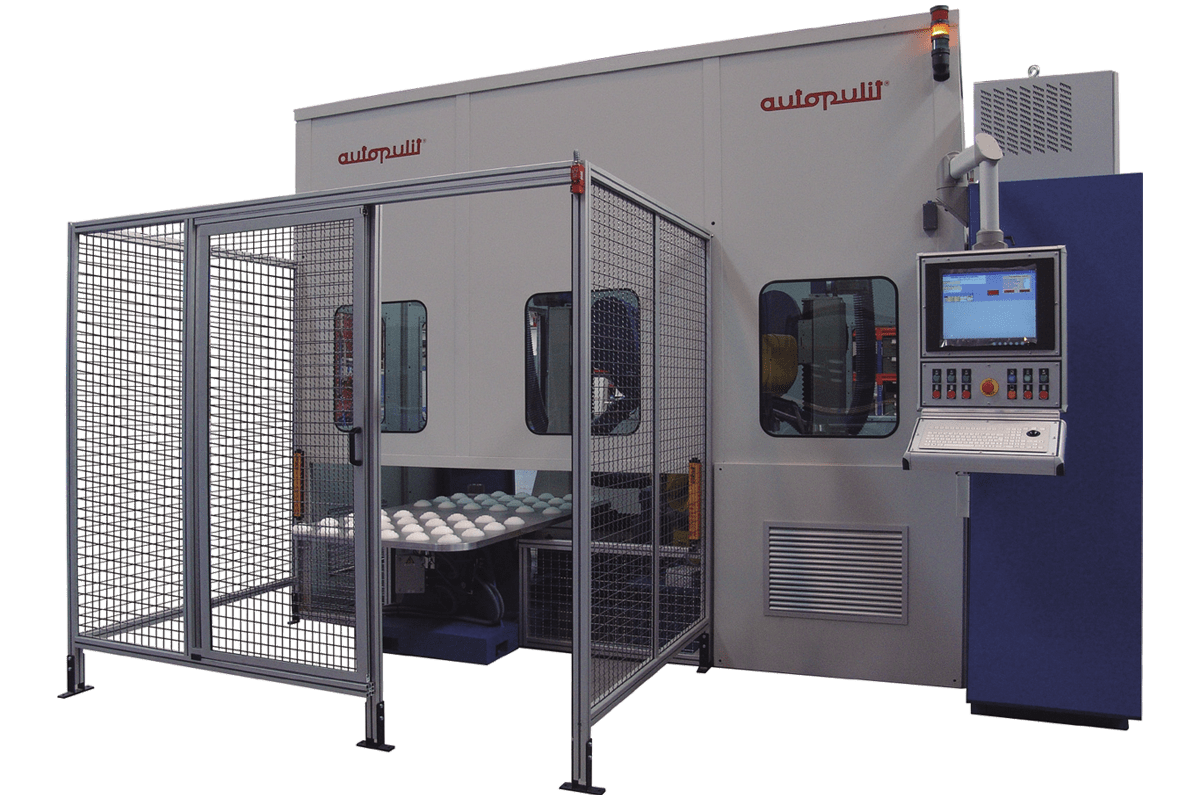

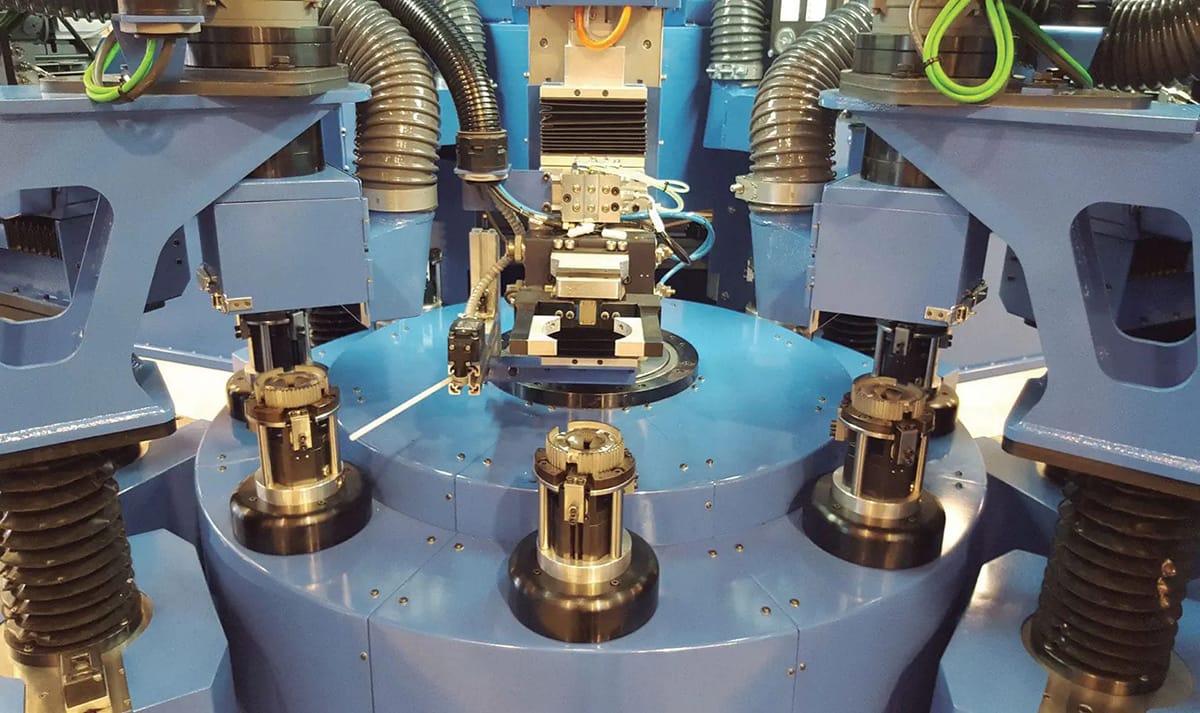

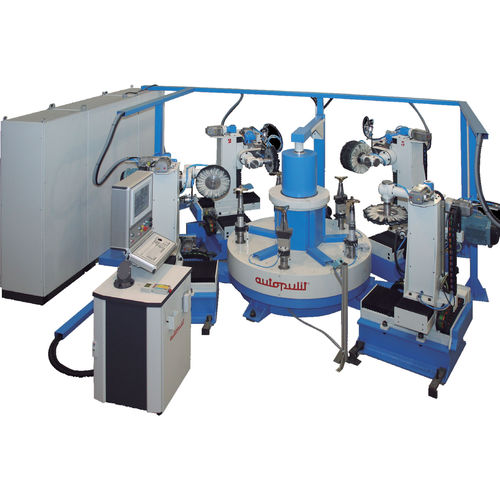

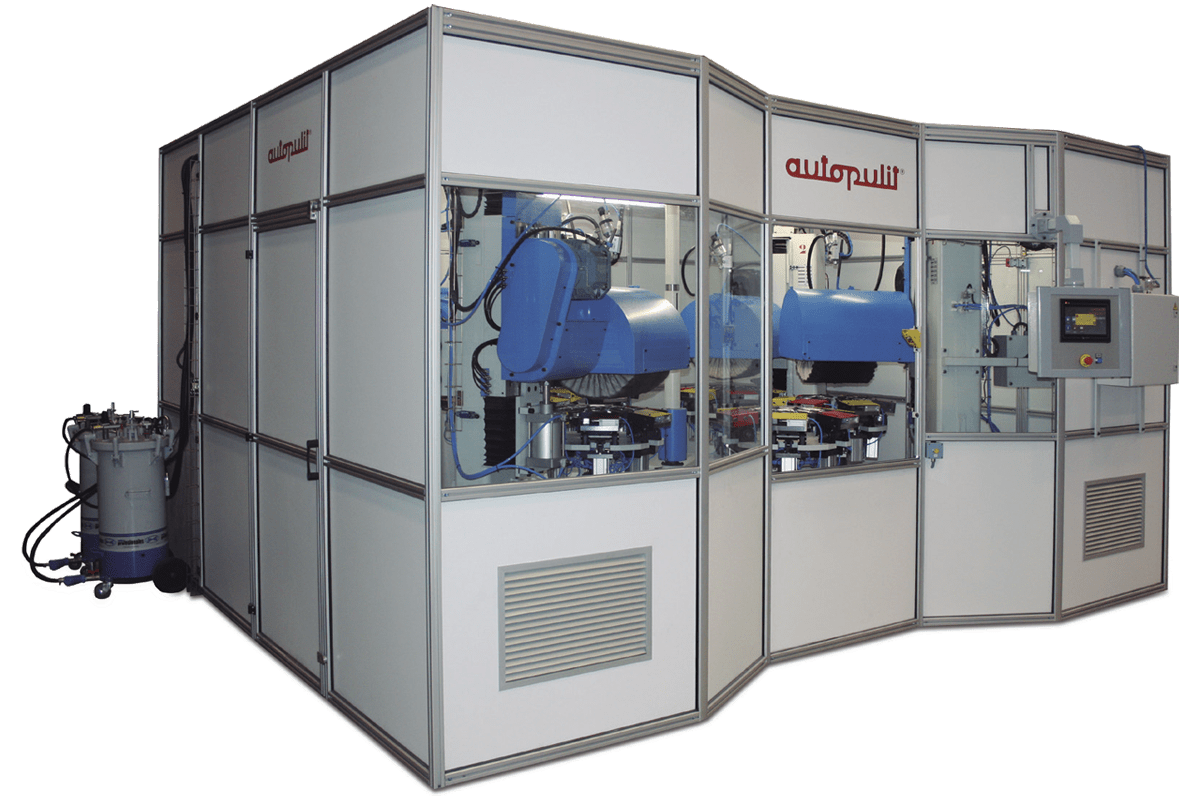

CNC ROTARY TRANSFER MACHINES
REHI-9-2200/8UP-CNC
CNC rotary transfer machine with 41 axes for the polishing of aluminium car/ truck wheels.
CNC ROTARY TRANSFER MACHINES
RSB-HI-CNC(5)-1200/4UT-CNC
CNC rotary transfer machine with 21 axes and 4 working heads, for the polishing of faucets-
CNC ROTARY TRANSFER MACHINES
RSB-HI-CNC(4)-1500/1UT-CNC
CNC rotary transfer machine for the polishing of aluminium parts from the automotive sector, with a 6 interpolated axes working head.

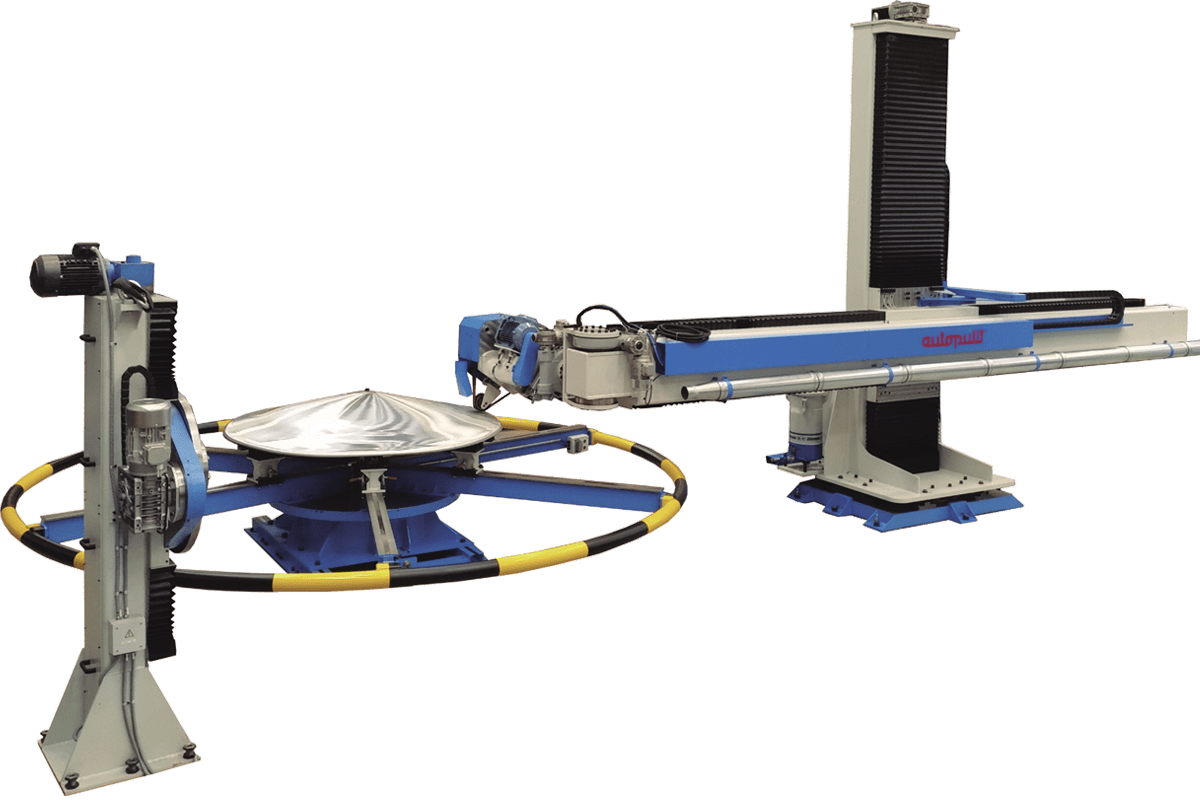

GANTRY POLISHING MACHINES
MR/1UT-CNC BRIDGE
CNC machine with 1 working head for abrasive belt grinding and polishing of tank ends, with rotary table.
GANTRY POLISHING MACHINES
PD/UTD TORPEDO 4000
Machine with rotary table for internal and external abrasive belt grinding and polishing of tank ends, up to 12 meter diameter, and tank bodies.
ROBOTIC CELLS

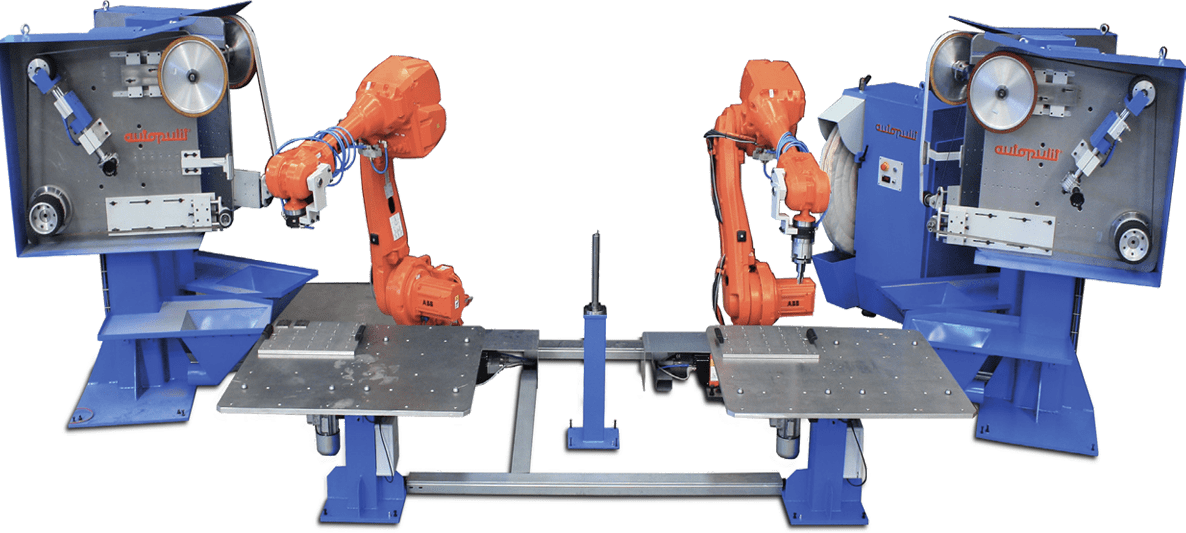

2 CR-60/2UL+2UL+PDG
Cell composed of 2 robots with 4 grinding units, 1 large buff polishing unit, 2 indexed parts magazine and parts exchanger between the robots.
ROBOTIC CELLS
CR-120/UL
Robotic cell with 1 grinding unit and automatic loading/unloading, for structural elements (doors, etc.) of the automotive sector.
ROBOTIC CELLS

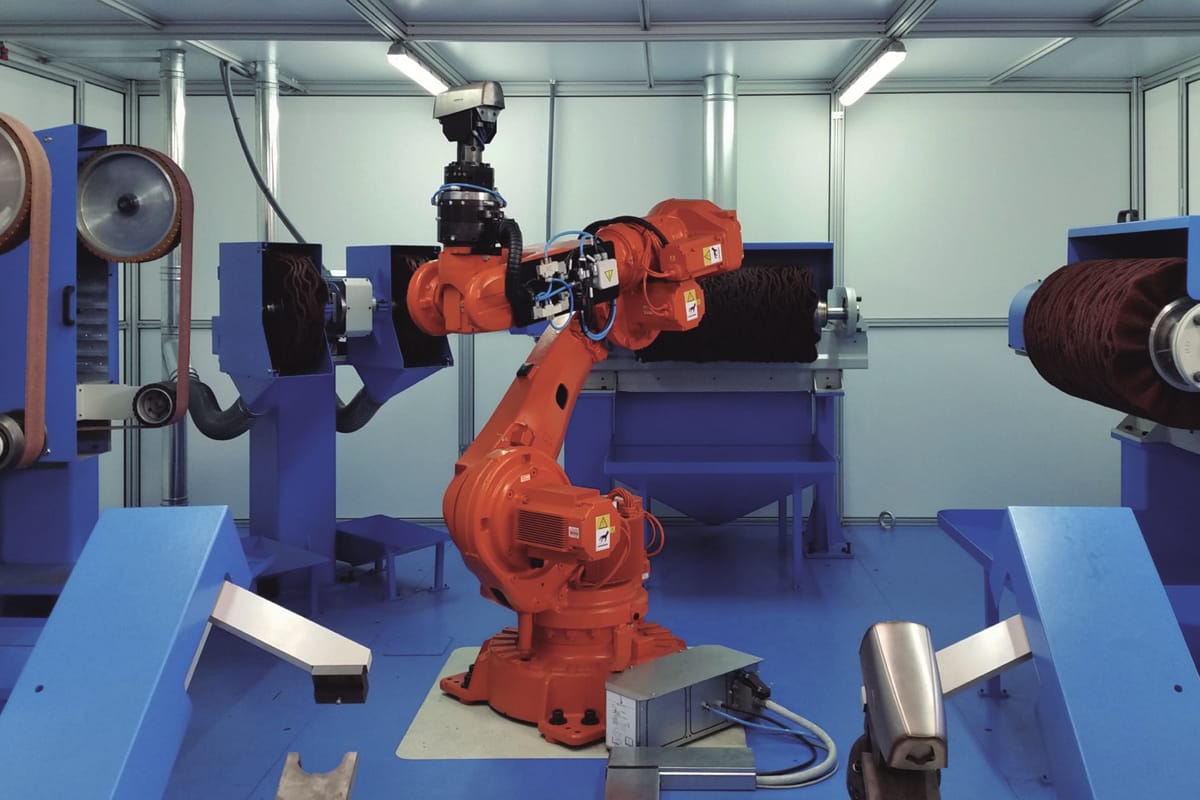

CR-150/2UL-100+1UPD-150+2UP-850
Robotic cell with 2 grinding units, 1 double polishing unit and 2 polishing units 850 mm wide for grinding welds and satin finishing of stainless steel parts.
ROBOTIC CELLS
CR-235/2UP-1250+1UPD
Robotic cell with piece holding multi-spindle of 4 units, 2 loading/ unloading garages and 2 polishing units 1250 mm wide.
ROBOTIC CELLS

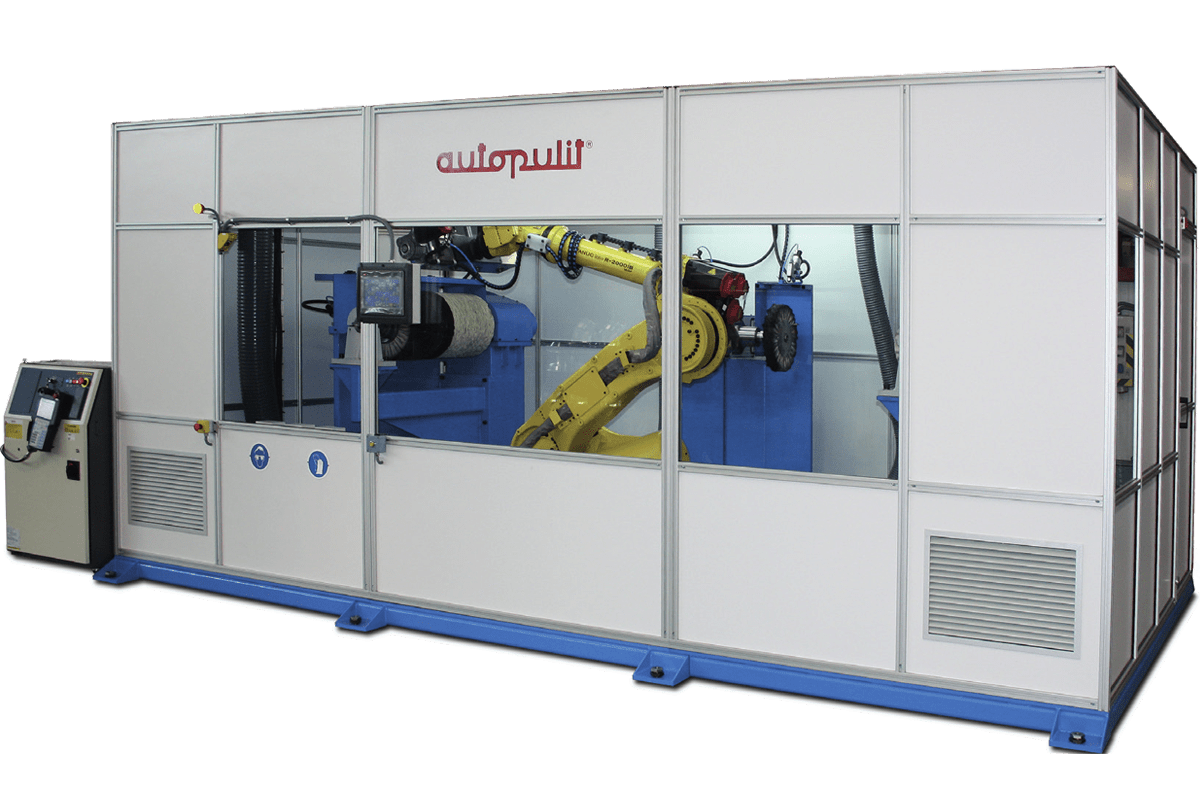

CR-165/2UP-1250+1UPD
Robotic cell with 3 polishing units and multi-spindles device for the finishing of several parts simultaneously.

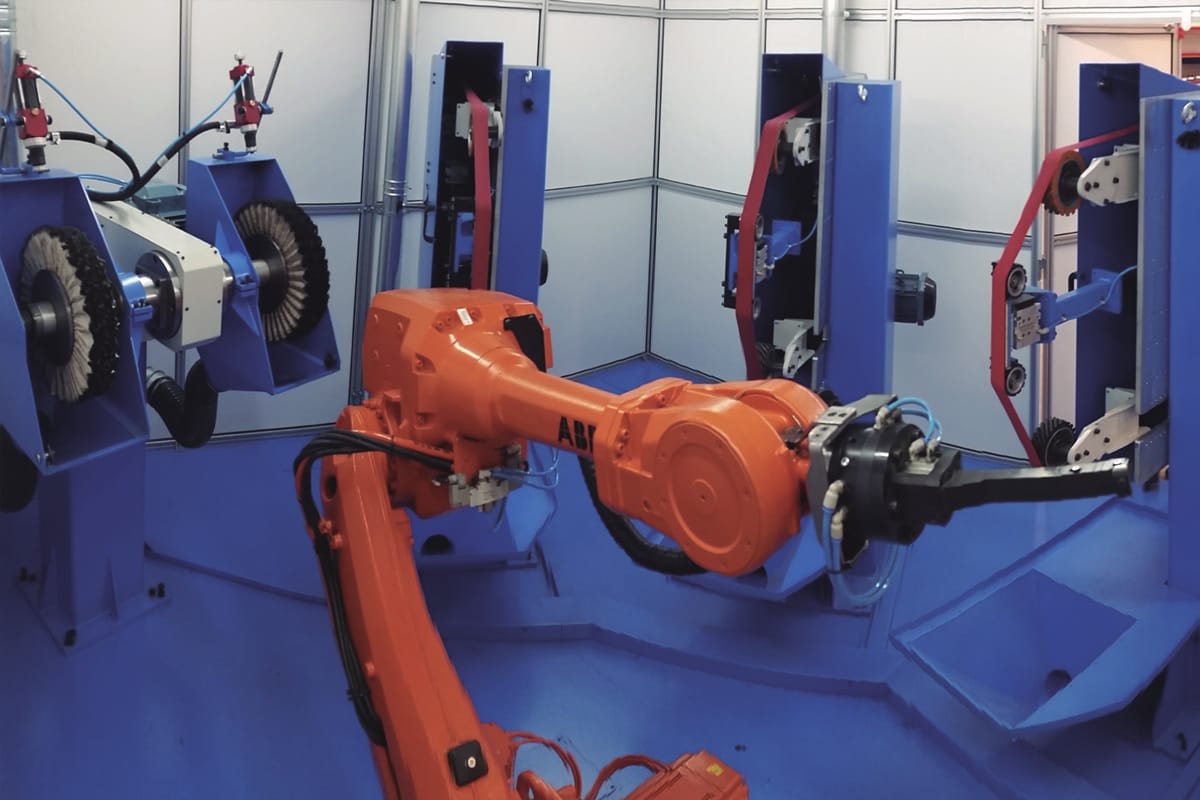

ROBOTIC CELLS
CR-60/2UL+PDG
Robotic cell with 2 grinding units, 1 large buff polishing unit, 1 drilling and tapping unit and indexed parts’ magazine.

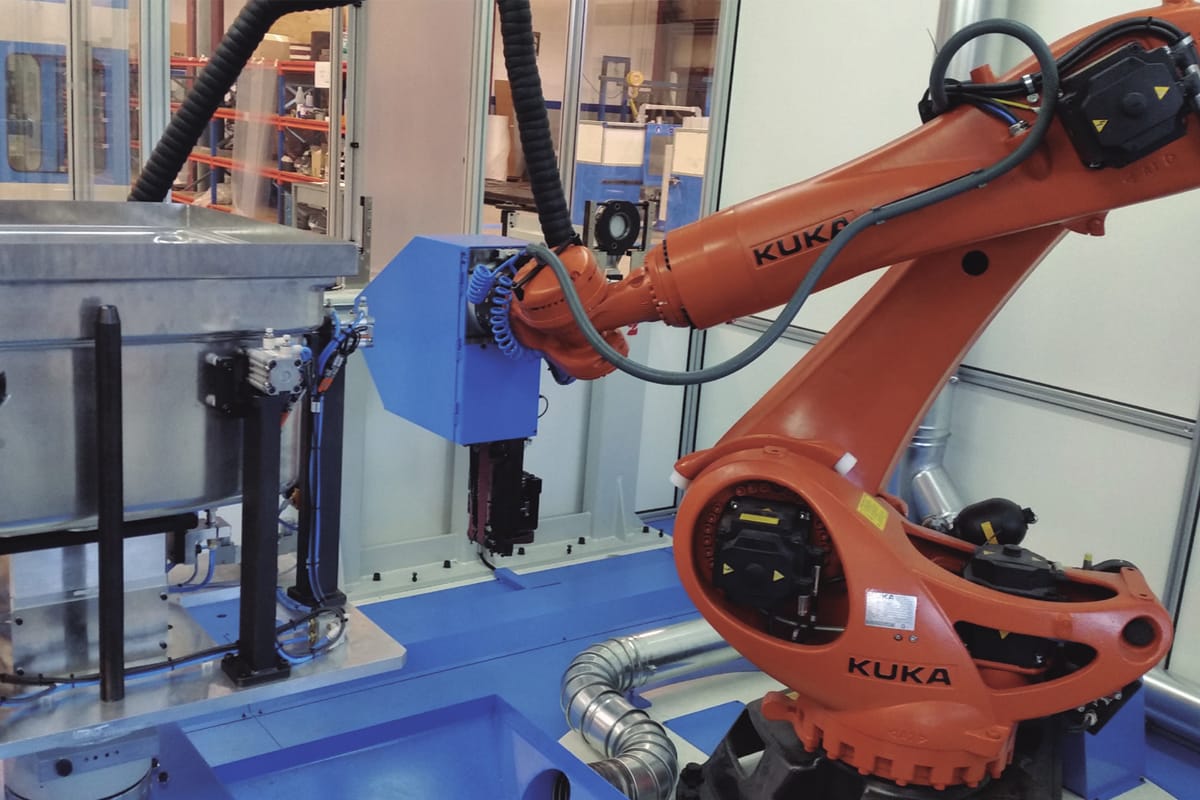

ROBOTIC CELLS
CR-210

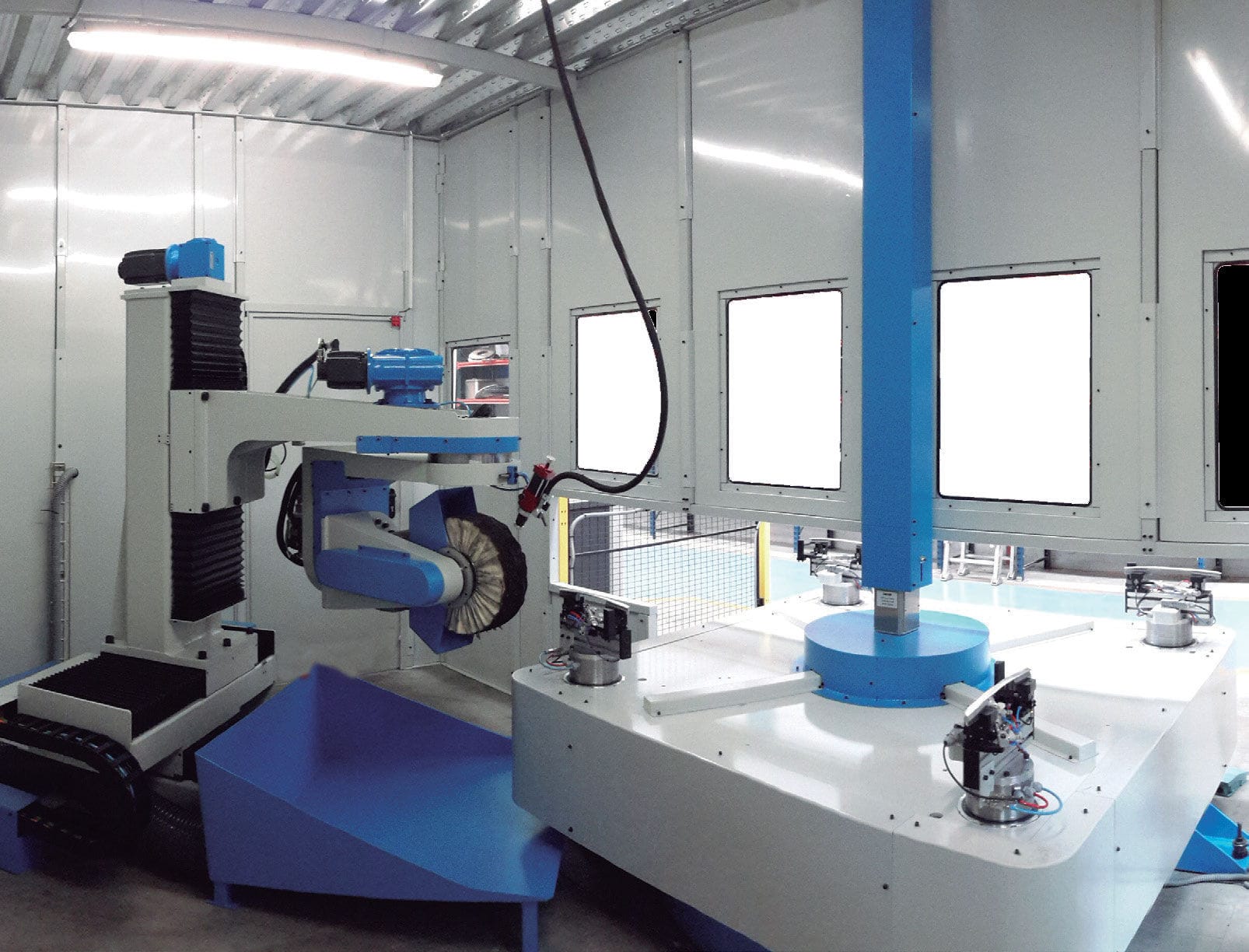

Robotic cell with tools automatic change and indexed piece holding table for 2 references, for grinding welds and satin finishing of part’s body.
ROBOTIC CELLS
CR-60/3UL+1UPD
Robotic cell with 3 grinding units, 1 double polishing unit and high capacity indexed rotation piece holding table, for hinges sector.
FLAT POLISHING MACHINES
CDA-1000X7000/2UP-CP
Polishing machine for metal sheets, profiles and flat parts with 2 mobile working heads and 2 tables.
FLAT POLISHING MACHINE
MA-250×6000/3UP-JSB
Polishing machine for profiles and flat parts with moving table and 3 working heads.
FLAT POLISHING MACHINE

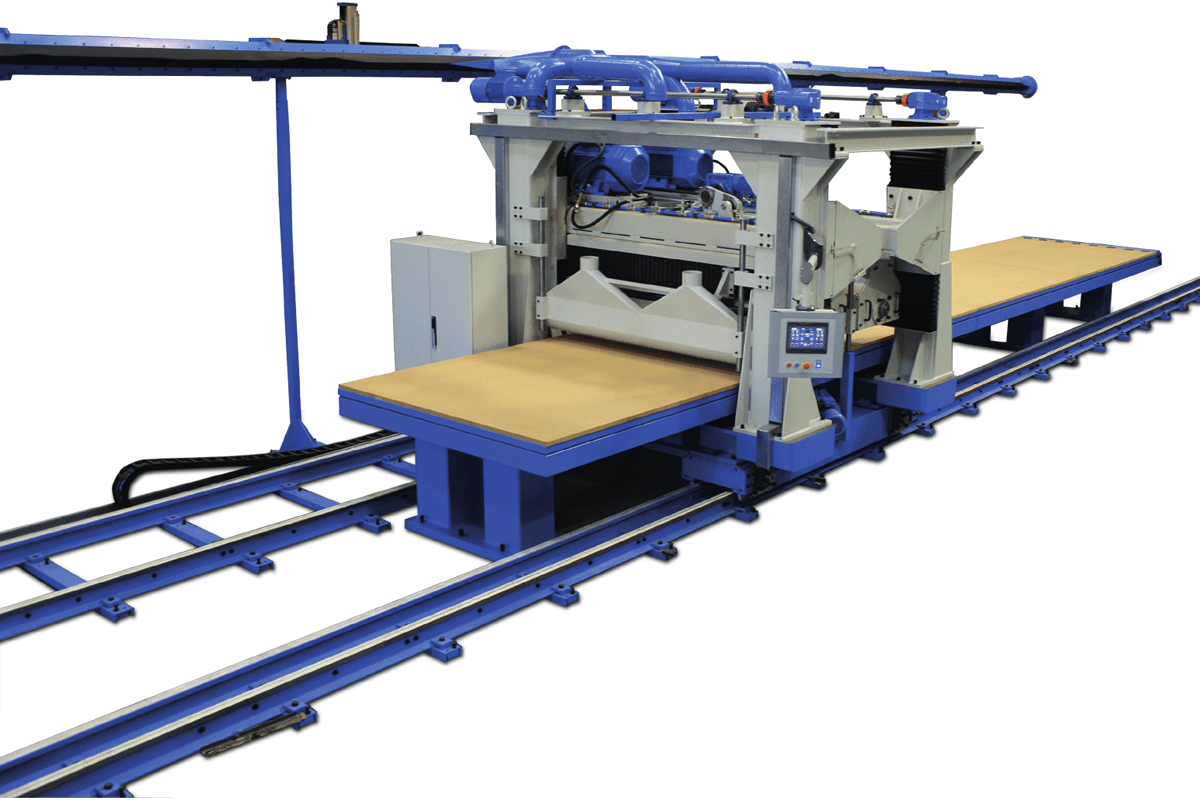

CDA-2000×12000/2UP-CP
Polishing machine for metal sheets, profiles and flat parts with 2 mobile working heads and table 2000mm wide and 12000mm long.
FLAT POLISHING MACHINE

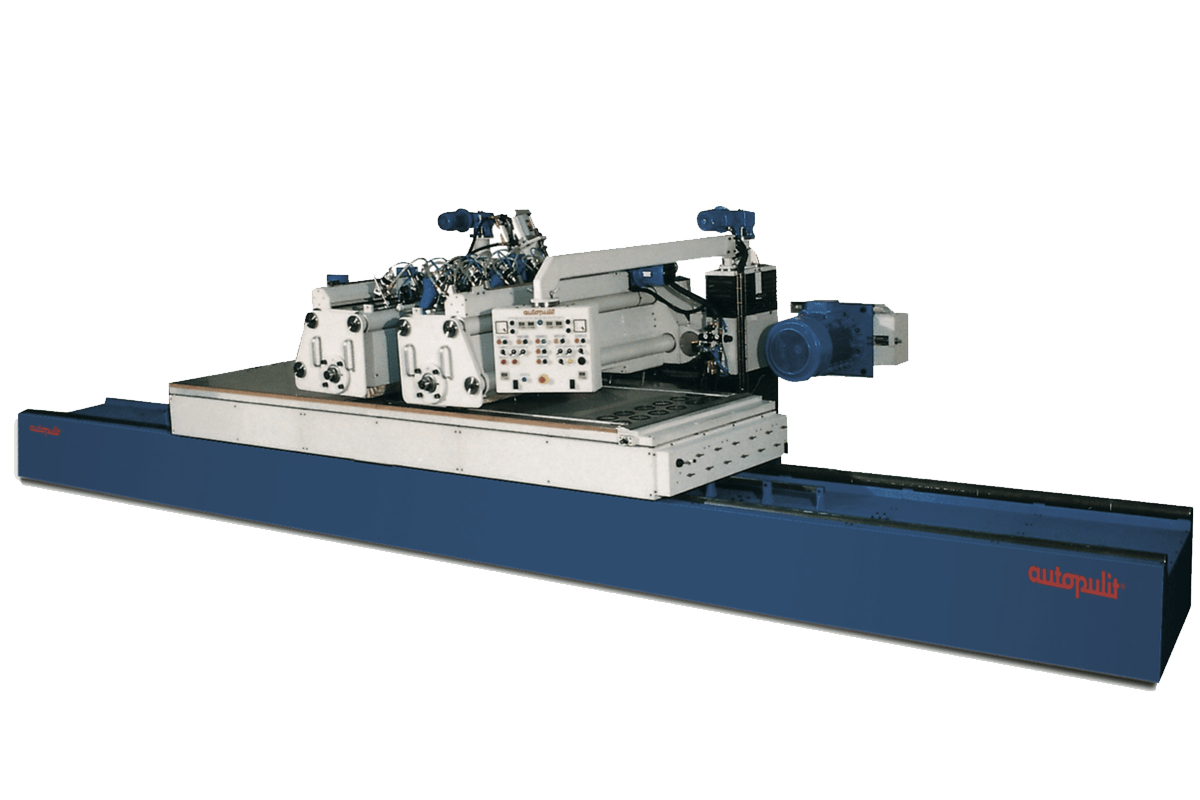

PHA-1250X3000/2UP-CP
Polishing machine for metal sheets, profiles and flat parts with moving table and 2 working heads.
SPECIALIST MACHINES
CDP-23000/8UT-E
Gantry type machine with 8 working heads for grinding boxes (metro- train-tram wagons).
SPECIALIST MACHINES

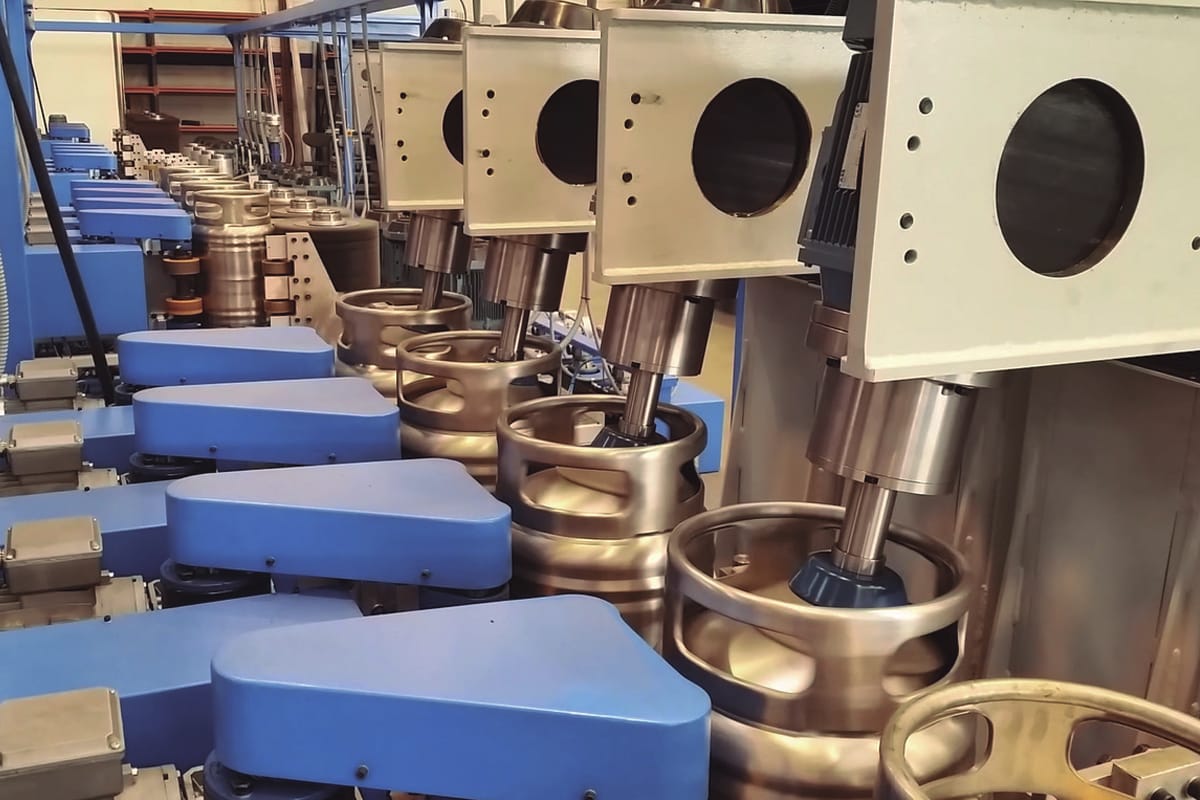

LCP-4x4UT
Automatic line for the brushing and satin finishing of gas bottles, equipped with 16 working units
SPECIALIST MACHINES

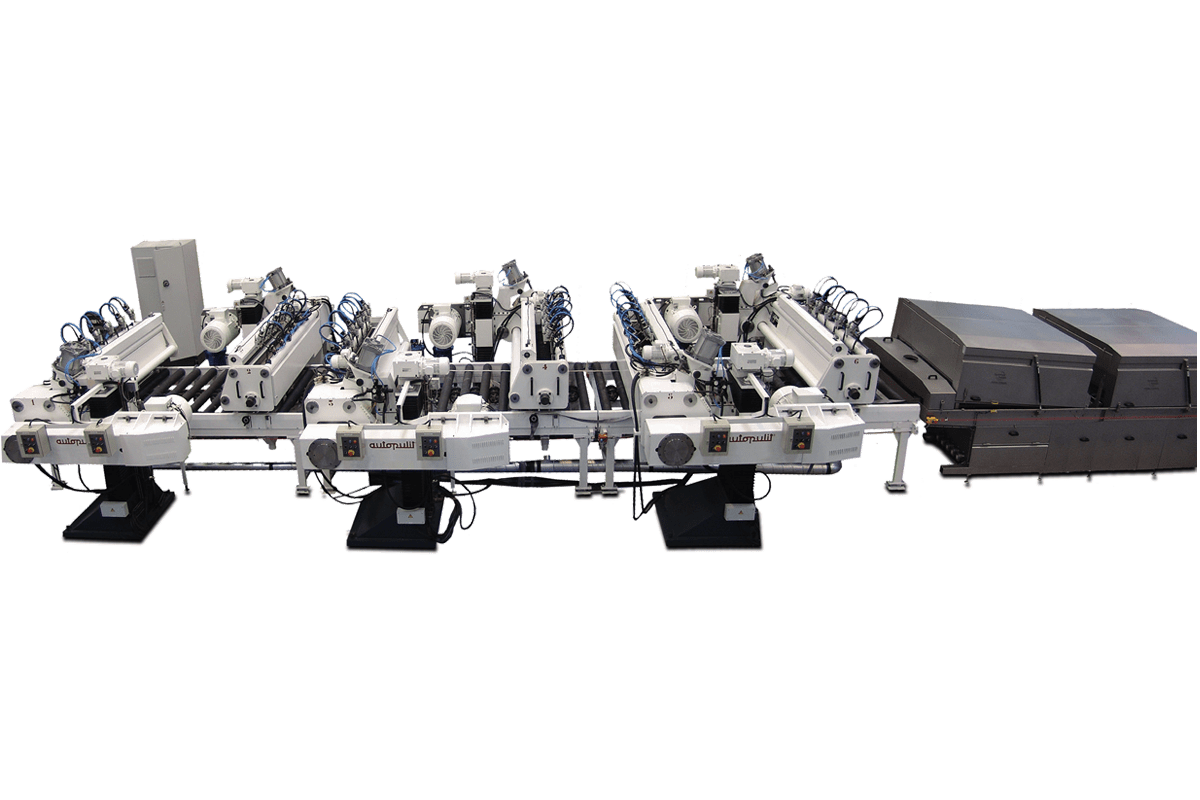

BR-1600/6UP-CP COIL
Coil polishing machine, 1600mm working width, with 6 polishing heads in line with degreasing and drying unit.
SPECIALIST MACHINES
CA-200×4000/3UP-CNC
CNC machine with 3 working heads for polishing and microfinishing of hydraulic cylinders before and after chrome plating.
SPECIALIST MACHINES

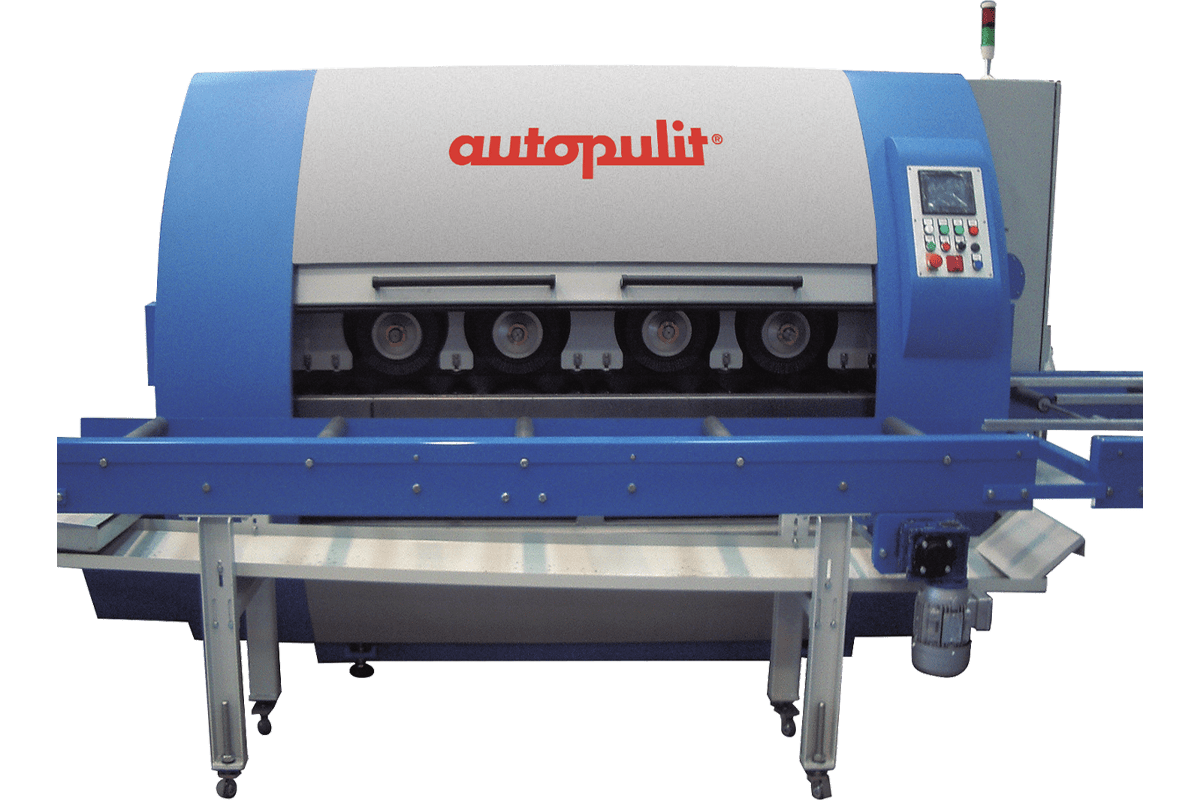

SG/4D
Brushing / satin finishing machine with 4 working heads for simultaneous top and bottom profiles finishing.
SPECIALIST MACHINES

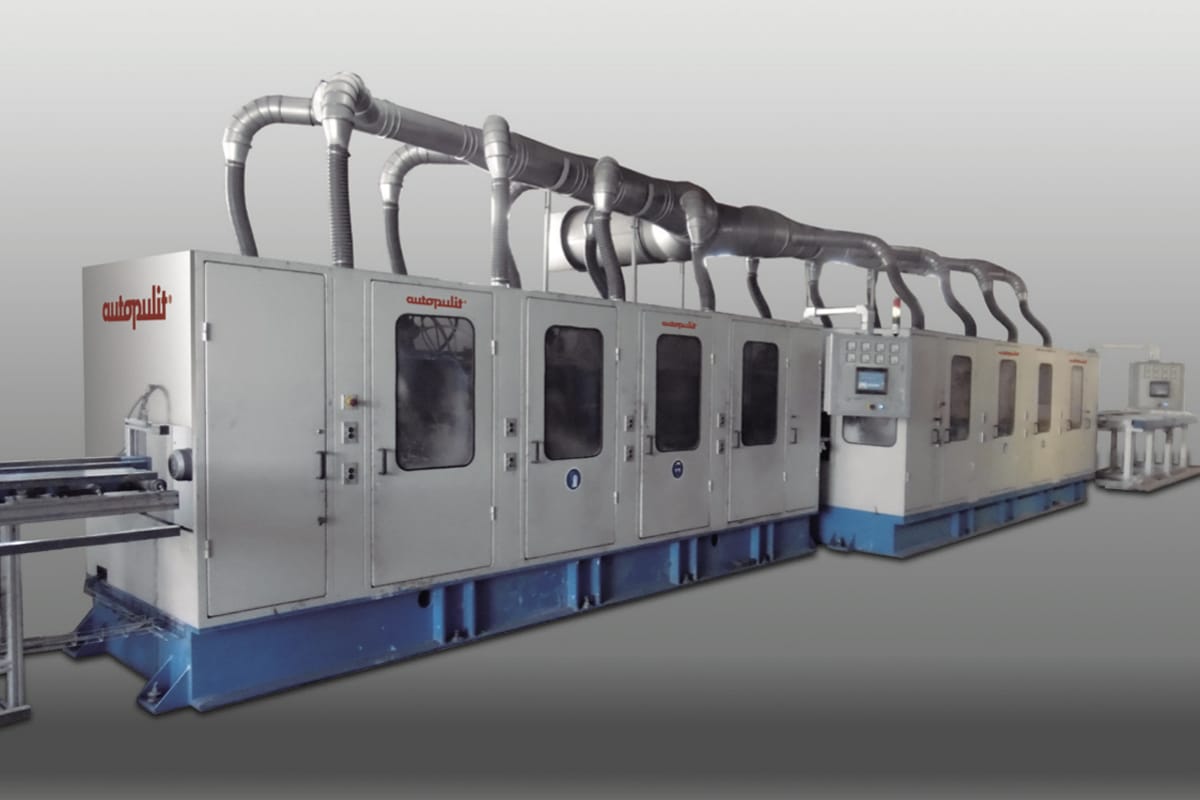

E4-200/8UT(4T+4B)
8 double working heads automatic line for simultaneous polishing of the 4 faces of square tubes, with input and output table/magazine.
CENTRELESS MACHINES

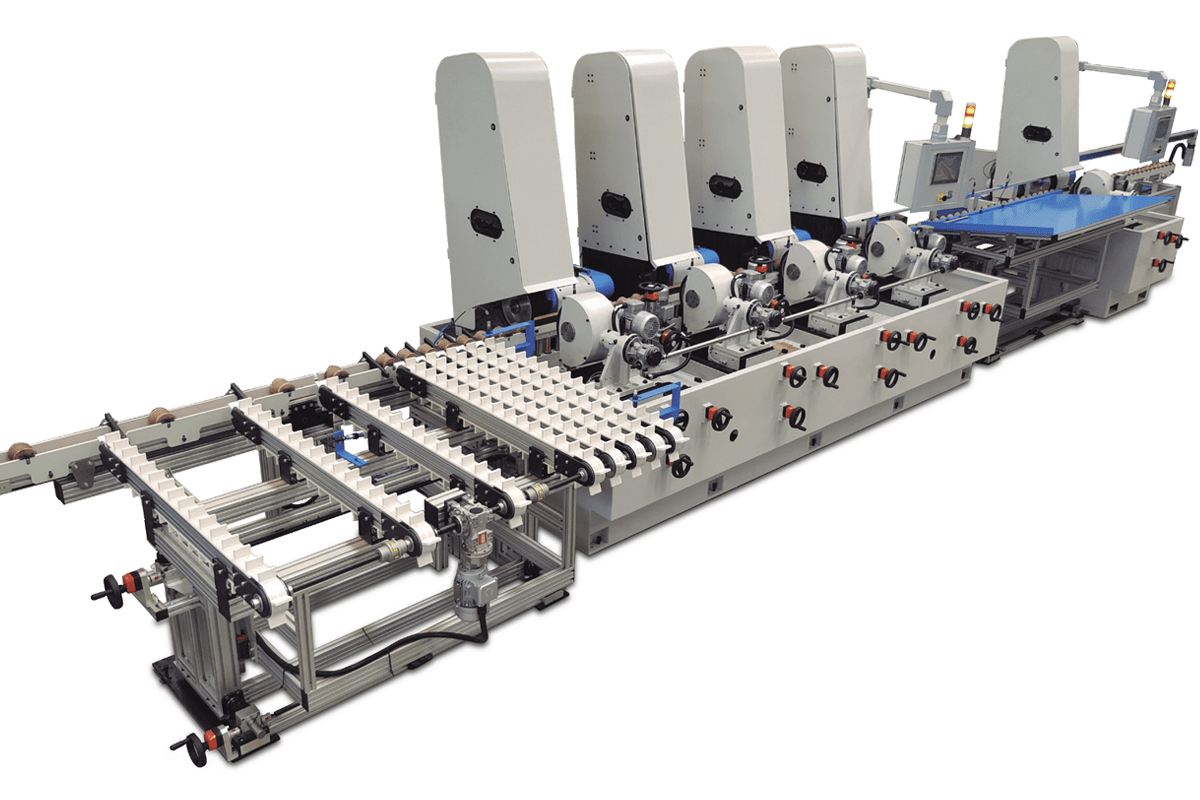

CT-I+CT-IV
Line composed of 2 centreless type machines for the belt grinding of cylindrical weld and finishing of round tubes and bars. The line includes automatic loading and unloading tables.
CENTRELESS MACHINES

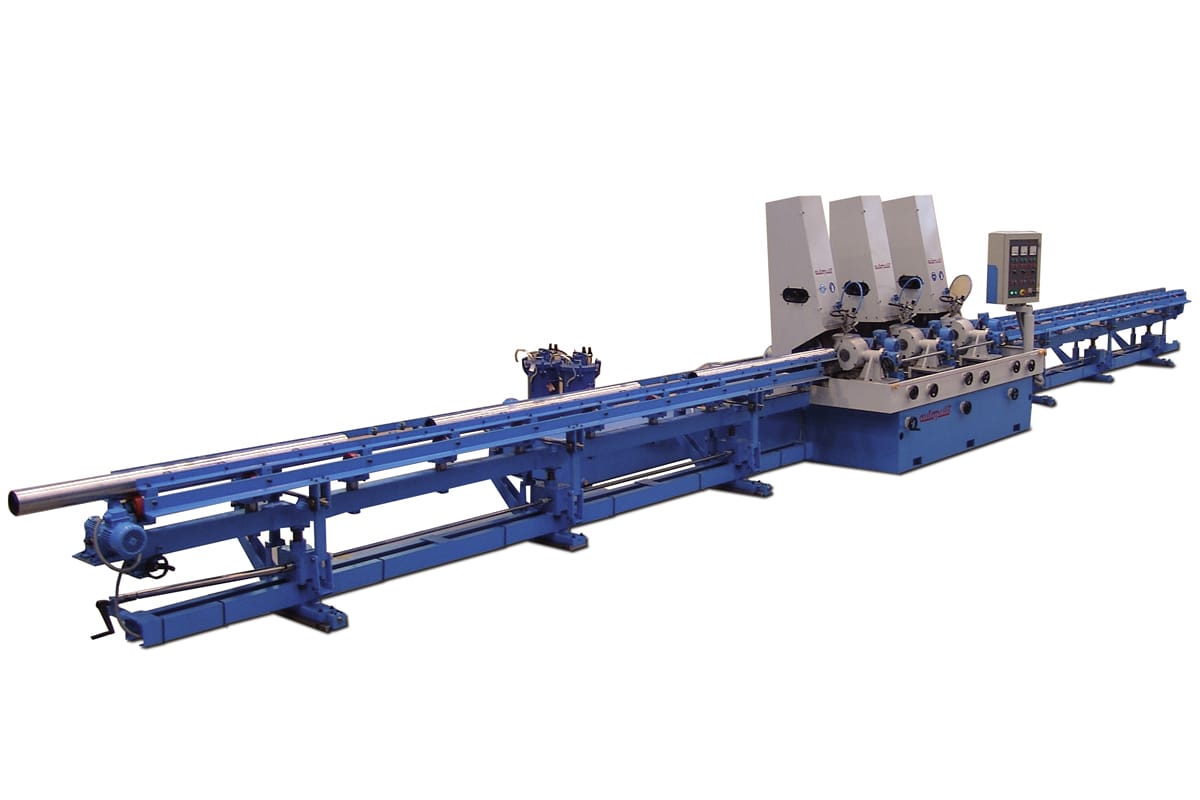

CT
CT type machines with different configurations and loading and unloading systems.
FLAT BELT GRINDING MACHINES

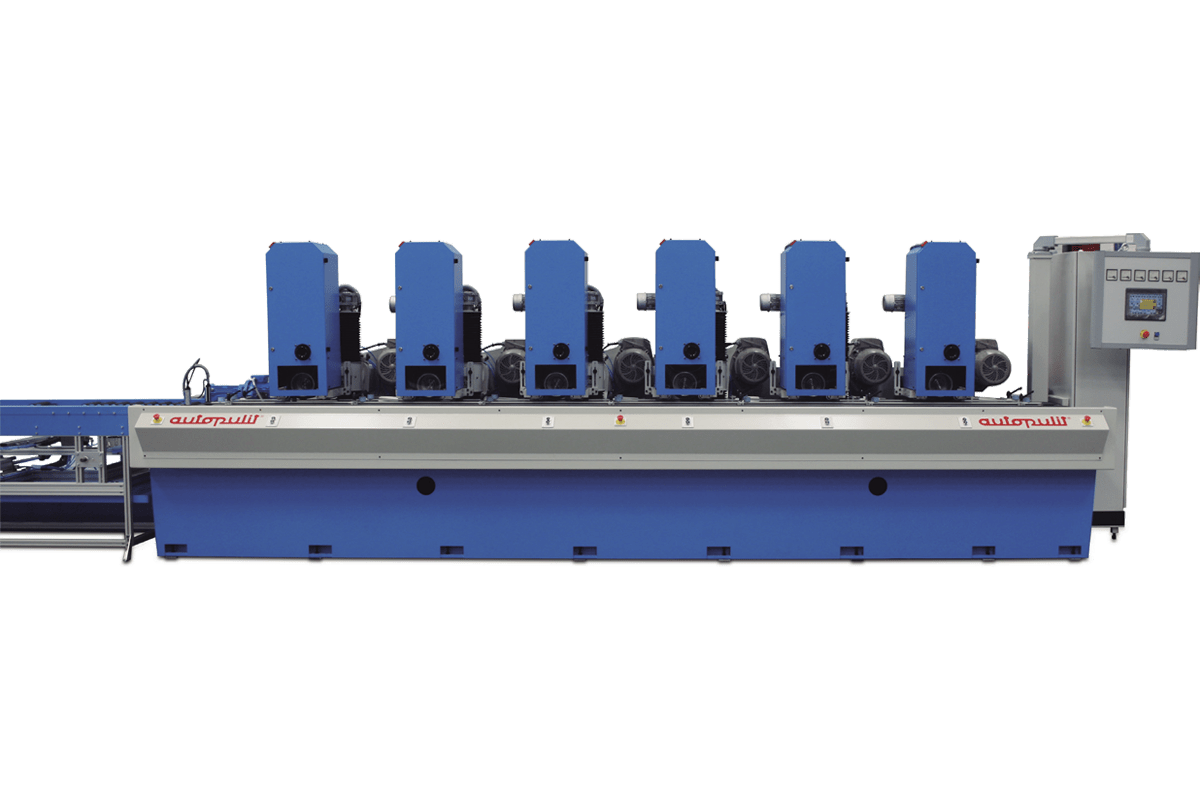

E4(R)-250/6UT
Belt grinding / polishing machine for flat parts with 6 working heads, including output and return table.
FLAT BELT GRINDING MACHINES

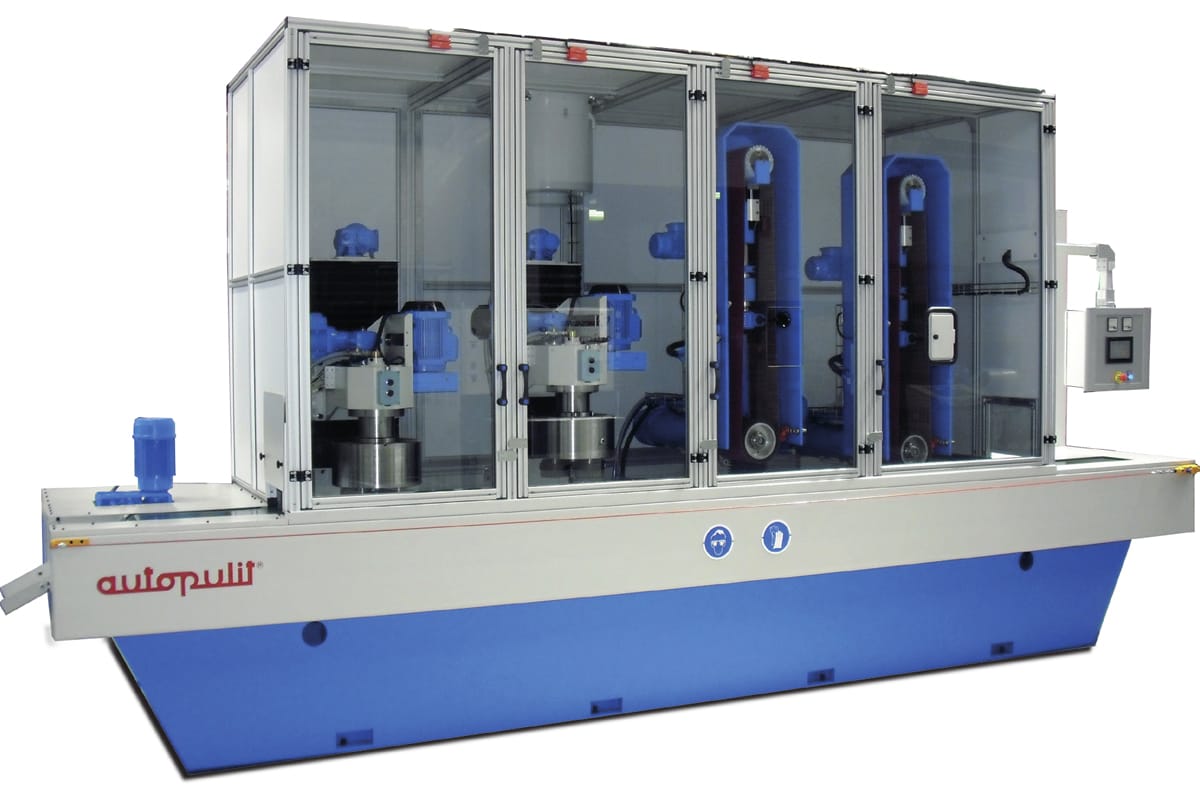

E4-200/2UT+2PL
Belt grinding / deburring machine for flat parts with 2 working heads with abrasive belt and 2 with planetary heads.
ROTARY TRANSFER MACHINES
RCHI-6-2000/5UP
Rotary transfer polishing machine equipped with 4 working heads and 5 piece holding spindles with capacity for 6 parts, for the household sector.
ROTARY TRANSFER MACHINES
RSB4HI-600/3UT-CN
Monoblock rotary transfer polishing machine equipped with 3 polishing heads, for watches, etc.
ROTARY TRANSFER MACHINES
RBHI(H)6-100/4CMG+1CI
Rotary machine for internal finishing of stainless steel or aluminium hollowware.
ROTARY TRANSFER MACHINES

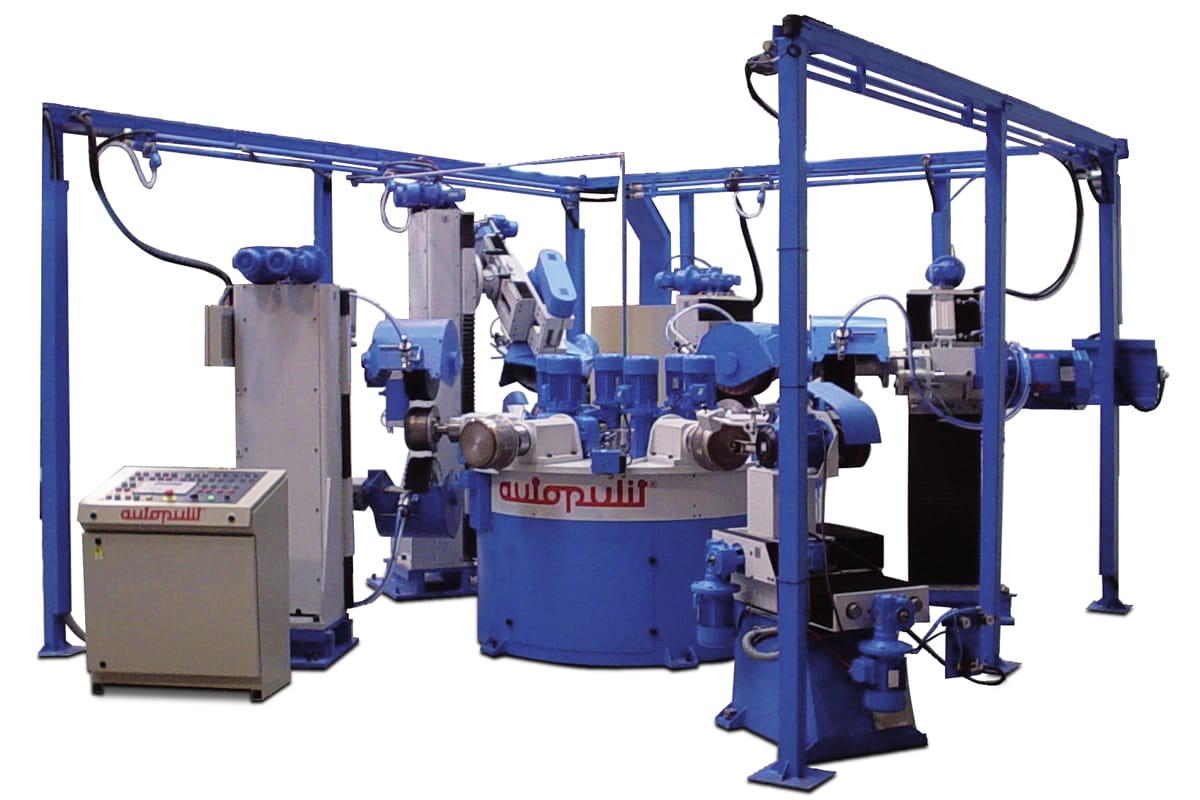

RHI-2000/3UTD+2UT+1CI
Machine for external polishing and external bottom belt grinding of stainless steel or aluminium hollowware, with 3 double and 3 simple working heads.
ROTARY TRANSFER MACHINES
RSB1/3UP-CNC
CNC machine for the deburring and chamfering of gears for the aerospace sector, with 2 brushing units, 1 chamfering unit and automatic loading/unloading by robot.
ROTARY TRANSFER MACHINES
RSB5-1000/4UT-JSB
Rotary machine equipped with 2 grinding units and 2 polishing units, for bathroom accessories.
SEMIAUTOMATIC AND MANUAL MACHINES

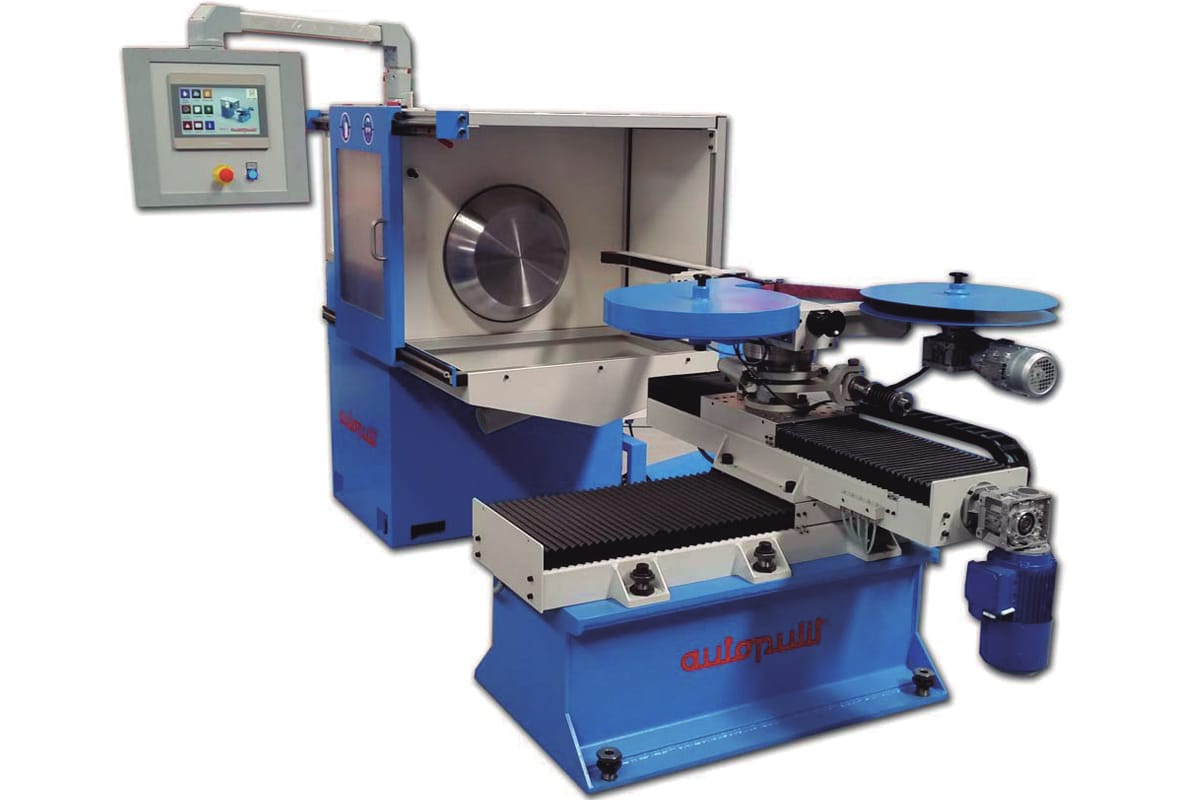

IRM
IRM type machine for internal and external grinding and satin finishing of pots, pans, jars, etc.
SEMIAUTOMATIC AND MANUAL MACHINES

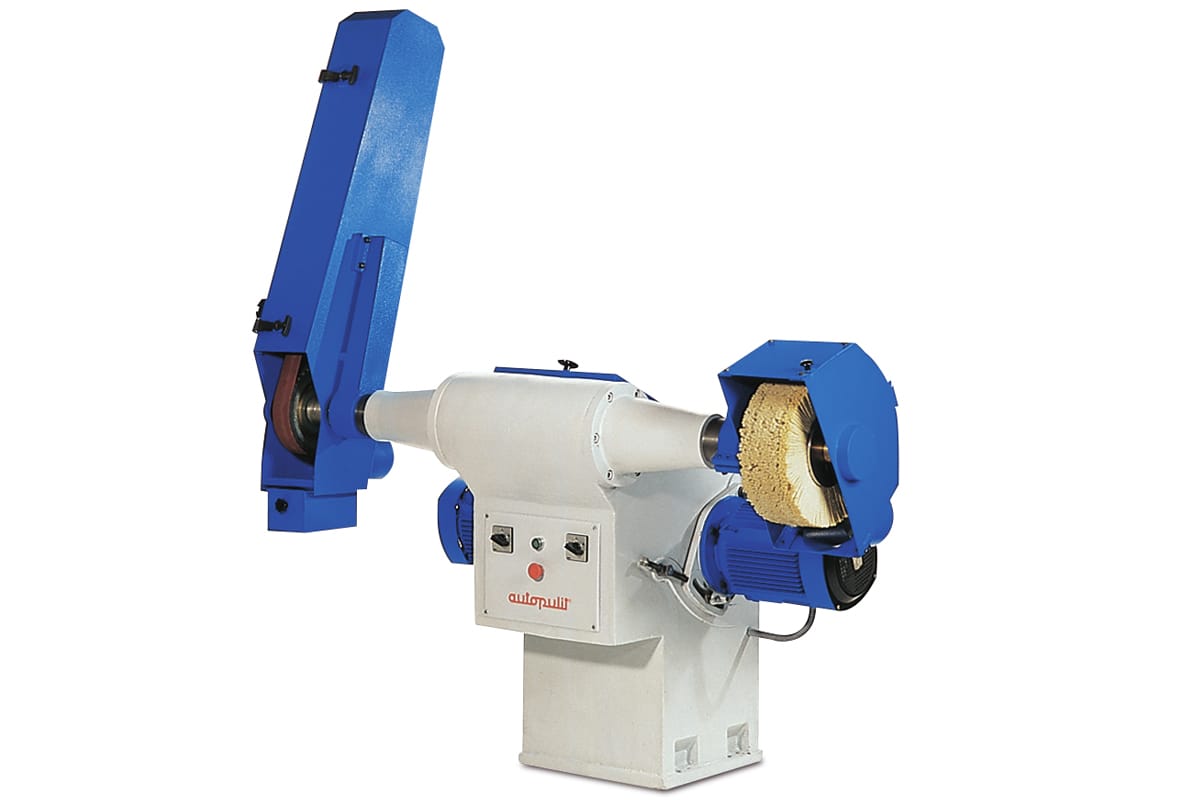

PF
Manual belt grinding and polishing machine
SEMIAUTOMATIC AND MANUAL MACHINES

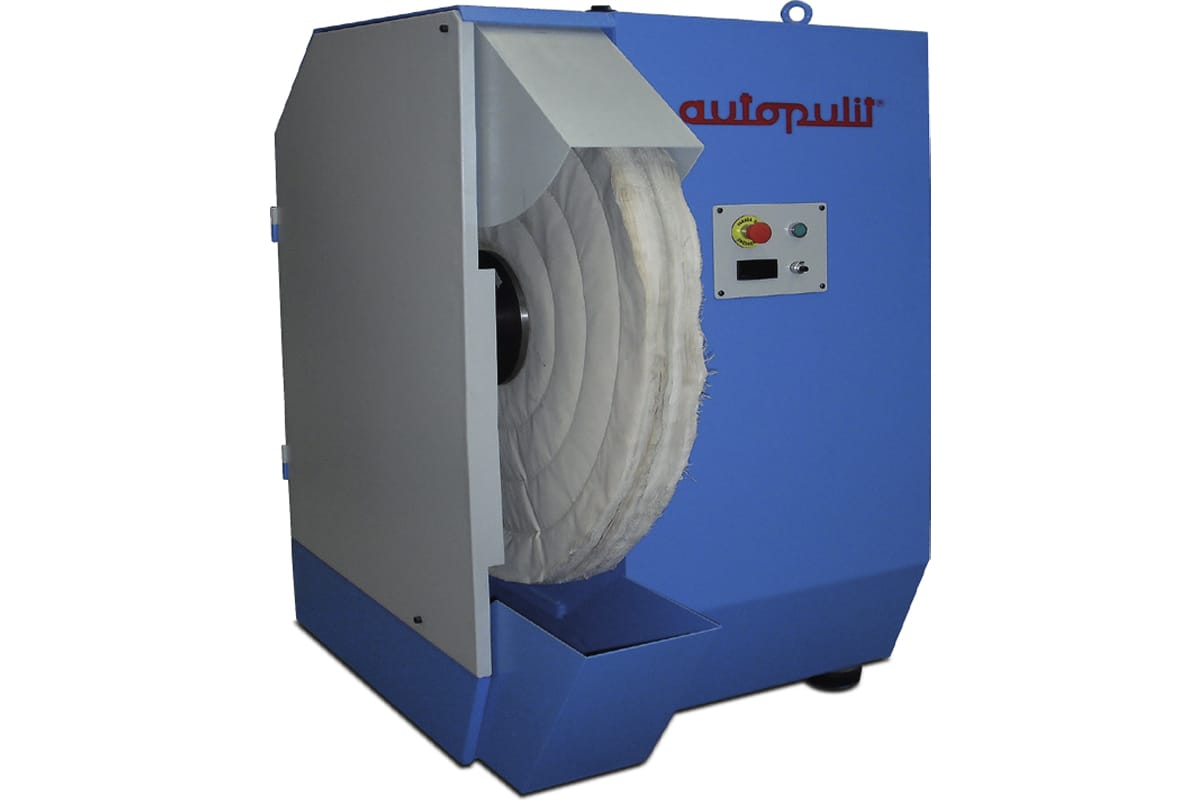

PDG
Manual polishing machine with 1000mm diameter large buff.
SEMIAUTOMATIC AND MANUAL MACHINES

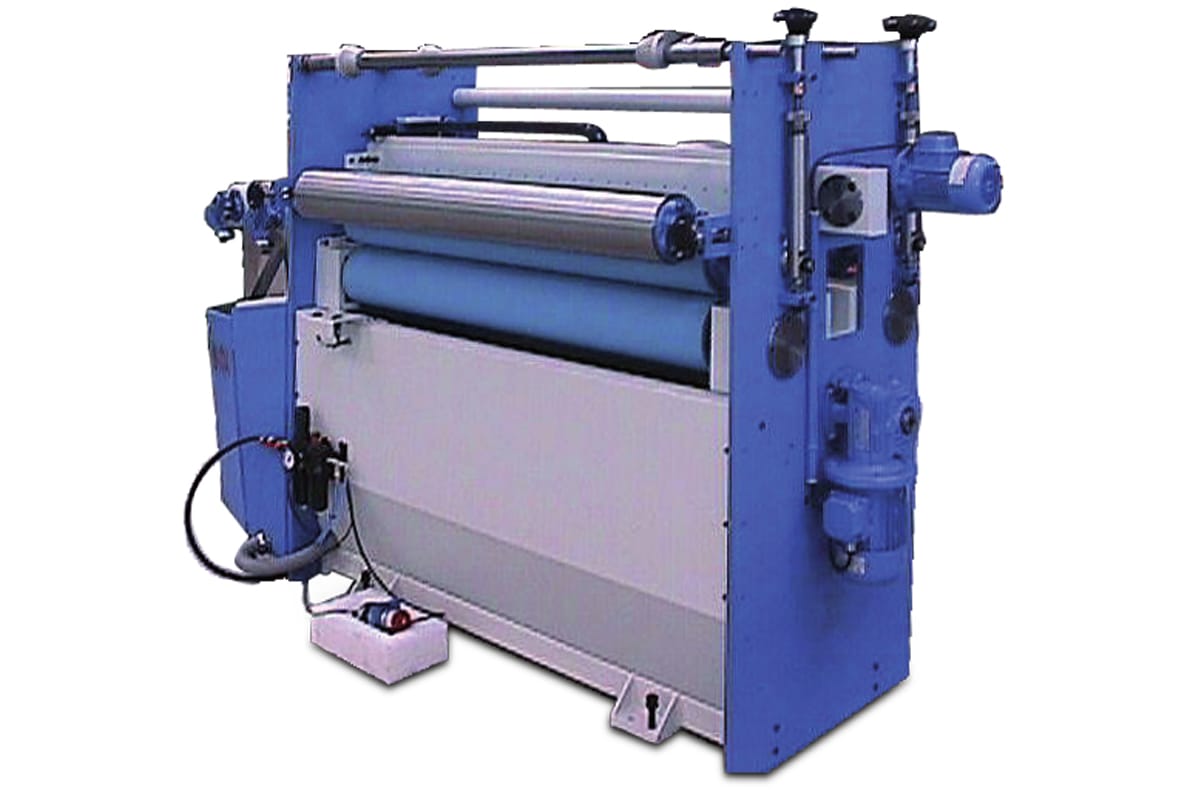

PL-A
Film coating machine for metal sheets.
SEMIAUTOMATIC AND MANUAL MACHINES

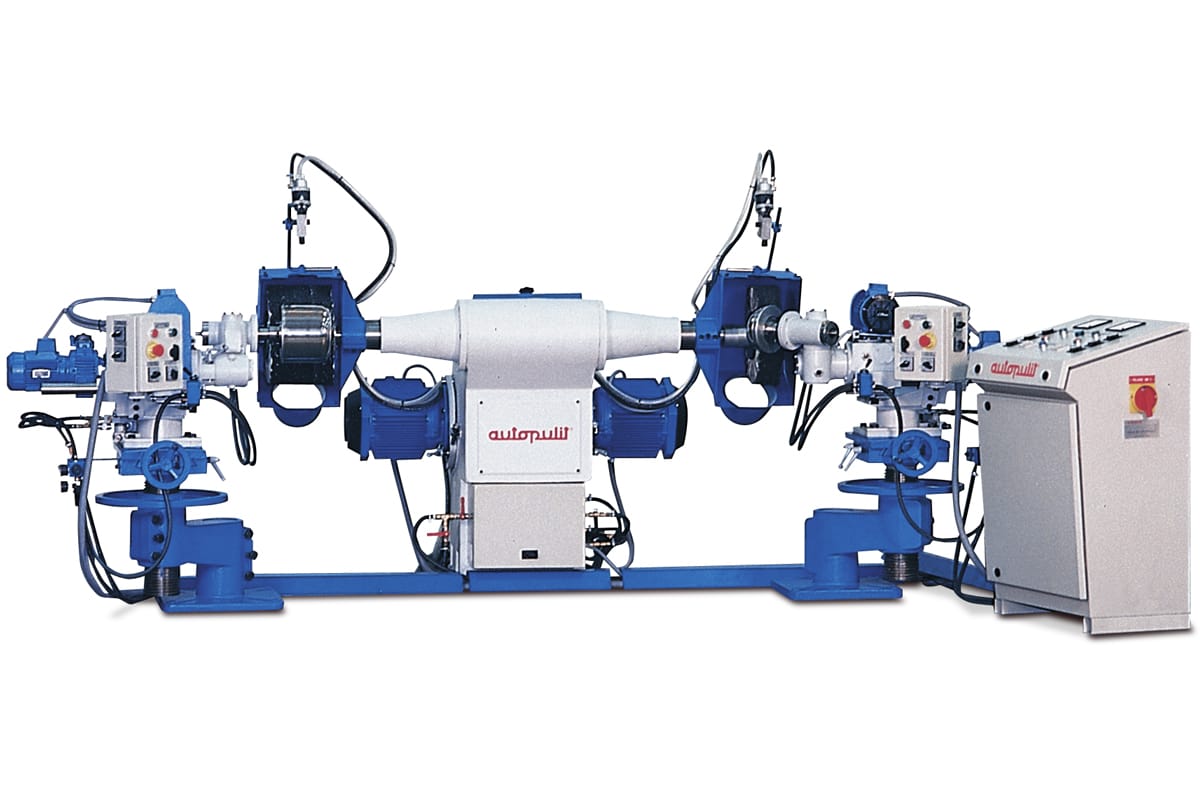

PFII/2APJ
Polishing machine with 2 piece holders for revolution parts.
Also available are machines from:
and
To find out more about available machines from KBM and Peitzmeier please fill in the form.
All inclusive
Service & maintenance included.
Cost per Part
Find out how little it really costs to improve production.
Find out about used Deburring and Metal Finishing Machines we have in stock
We have some used machines which offer quality functionality as new machine but with a price advantage to suit your application. Find out more about our current stock of used machines.
